Siemens SIMATIC ET 200S Relay Output Module

Description

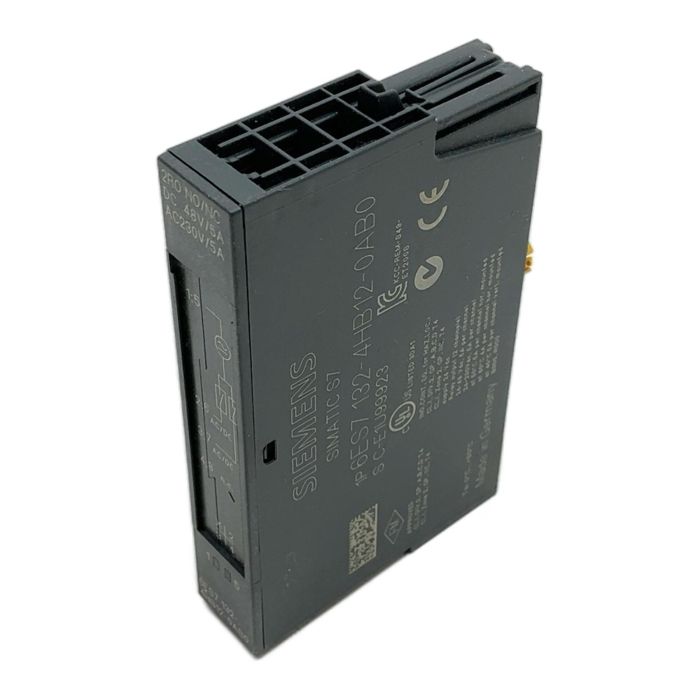

This is the 6ES7132-4HB12-0AB0, a versatile relay output electronics module for the Siemens SIMATIC ET 200S distributed I/O system. It is designed to switch both AC and DC loads with galvanic isolation, making it suitable for a wide range of industrial automation applications. As an obsolete part, it is a crucial component for the maintenance and repair of existing ET 200S systems.

Specifications

• Manufacturer: Siemens
• Product Line: SIMATIC ET 200S
• Model: 6ES7132-4HB12-0AB0
• Module Type: Relay Output Module
• Number of Outputs: 2
• Contact Type: Normally Open (NO) / Normally Closed (NC)
• Rated Voltage (DC): 24 V to 48 V
• Rated Voltage (AC): 24 V to 230 V
• Output Current: 5 A per channel
• Isolation: Galvanically isolated
• Width: 30 mm

Label Info

• 1P 6ES7 132-4HB12-0AB0
• S C-E1U99923
• Made in Germany

Application

Ideal for controlling actuators such as contactors, solenoid valves, and motors in automated systems where higher currents or different voltage levels need to be switched. It is commonly used in manufacturing, process control, and building automation.

Country of Origin

Germany

CO2 Impact

Reusing this component saves approximately 3.0 kg of CO2 compared to manufacturing a new one. This choice supports a circular economy and reduces industrial waste.

Availability

This is an obsolete item, essential for extending the lifespan of legacy equipment. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
Can this 6ES7132-4HB12-0AB0 module be used with any ET 200S terminal module?
Answer:

No, this electronics module requires a specific terminal module for power distribution and I/O connection. Compatible terminal modules are typically the TM-E30S41-01 or TM-E30C41-01 to ensure proper functionality and fit. Always check the system manual.

"FS" stands for "Funktionsstand" or Functional State, which is essentially the hardware and firmware version of the module. FS: 01 is an early version. While it will perform its core functions, newer versions might have minor improvements or bug fixes. It's important for compatibility if you are replacing a module in a validated system.

No, while the relay outputs provide galvanic isolation from the PLC's backplane bus, the two channels on this specific module typically share a common potential group. For applications requiring complete channel-to-channel isolation, a different module or two separate modules would be necessary.
