Siemens SIMATIC S5 Analog Input Module

Description

The 6ES5460-4UA13 is an analog input module for the well-established Siemens SIMATIC S5 automation system. It is designed to process analog signals from sensors and transducers, converting them into digital values for the PLC's CPU. With 8 configurable input channels, this module offers flexibility for various industrial measurement tasks, ensuring the continued reliability of your legacy systems.

Specifications

• Manufacturer: Siemens
• Product Line: SIMATIC S5
• Model: 6ES5 460-4UA13
• Function: Analog Input Module
• Number of Inputs: 8
• Input Ranges: Configurable for voltage, current, and resistance (requires range modules)
• Compatibility: S5-115U/H/F, S5-135U, S5-155U/H systems
• Isolation: Non-isolated

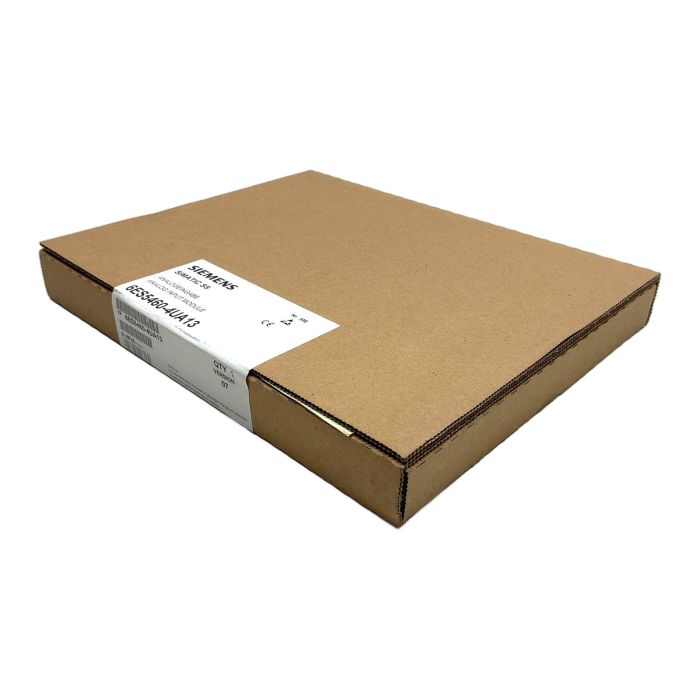

Label Info

• Part Number: 6ES5460-4UA13
• Version: 07

Application

This module is ideal for applications requiring the measurement of analog process variables such as temperature, pressure, flow, and level in industries running on SIMATIC S5 controllers. It serves as a direct replacement part for maintaining existing automation infrastructure.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned module instead of a new system, you are contributing to the circular economy and have helped avoid approximately 24 kg of CO2 emissions. This is comparable to the savings from driving a car for 120 kilometers.

Availability

This item is an obsolete part but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module is designed for the Siemens SIMATIC S5 family, specifically for the S5-115U, S5-135U, and S5-155U central processing units. It is not compatible with the newer S7 series.

The 6ES5460-4UA13 is versatile and can be configured to measure various signal types, including voltage (e.g., +/-1V, +/-10V, 0-10V), current (e.g., +/-20mA, 4-20mA), and resistance (e.g., Pt100 RTDs). The specific range is selected using range modules inserted into the module.

No, the Siemens 6ES5460-4UA13 is a non-isolated analog input module. For applications requiring channel-to-channel or channel-to-bus isolation, you would need to use a different module from the S5 series.
