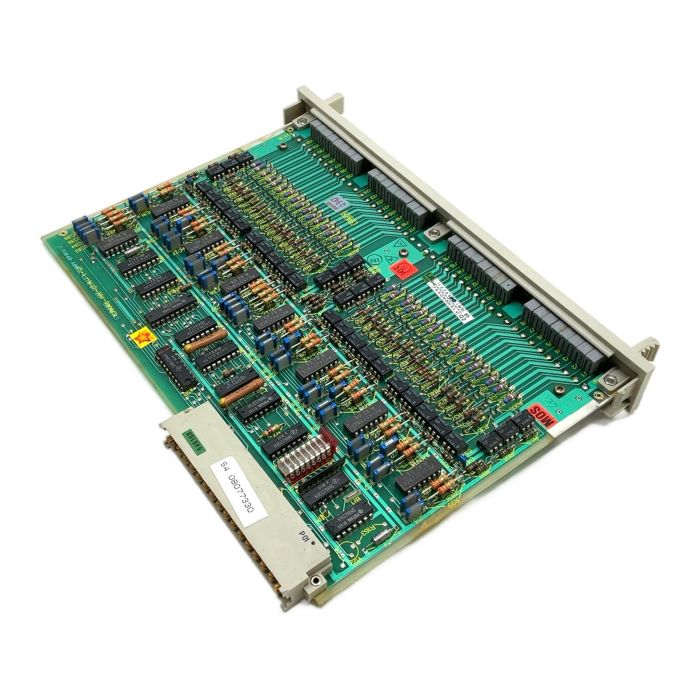

Siemens SIMATIC S5 Digital Input Module 6ES5430-6AA11

Description

The 6ES5430-6AA11 is a digital input module from the robust Siemens SIMATIC S5 series. It is designed to interface 32 digital signals at 24V DC with S5 central processing units. This module is essential for monitoring machine states, reading sensor data, and integrating switch inputs into your automation process. It is a reliable, high-density input solution for larger S5 systems.

Specifications

• Manufacturer: Siemens
• Series: SIMATIC S5
• Model: 6ES5 430-6AA11
• Product Type: Digital Input Module
• Number of Inputs: 32
• Input Voltage: 24V DC
• Input Current: Approx. 7mA per input
• Compatible Systems: S5-130U, S5-130W, S5-150U, S5-150S, S5-150K

Label Info

• MLFB: 6ES5430-6AA11
• Charge: 08077330

Application

This module is typically used in manufacturing, process control, and material handling applications that rely on the Siemens S5 automation platform. It serves to connect a wide range of field devices like proximity sensors, push buttons, and limit switches to the PLC.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the production of a new one, saving an estimated 16 kg of CO2. This is a significant contribution to sustainable industrial practices.

Availability

This product line is obsolete but available as a spare part for maintenance and repair of existing installations. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the 6ES5430-6AA11 is specifically designed for the larger S5-130U, S5-130W, and S5-150U/S/K series PLCs. For the S5-115U, you would need a different series of I/O modules, such as the 6ES5430-4UA12.

The typical input delay for the 6ES5430-6AA11 is approximately 1.5 to 4.5 milliseconds, depending on the specific signal transition (from 0 to 1 or 1 to 0). This is important for applications requiring fast signal processing.

The module itself is powered via the S5 backplane bus. However, the 24V DC for the input signals must be supplied externally to the field devices and connected to the module's input terminals.
