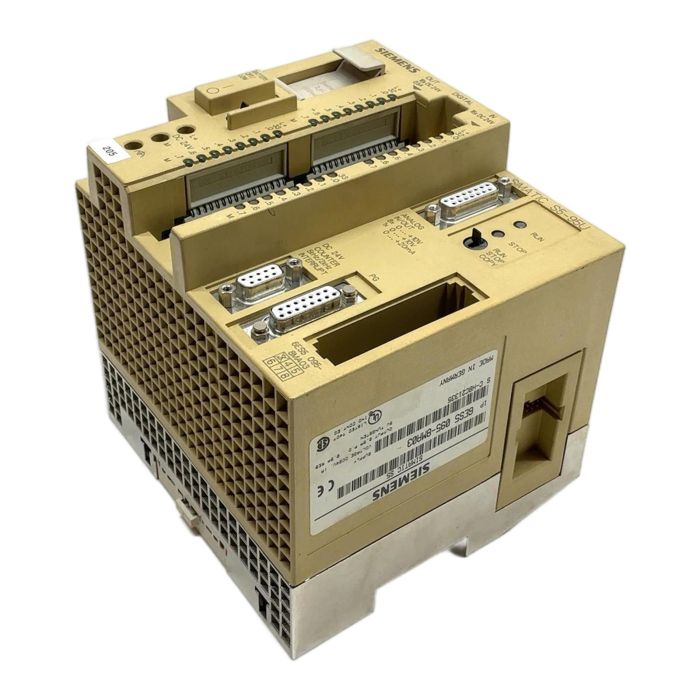

Siemens SIMATIC S5-95U Controller

Description

The Siemens 6ES5095-8MA03 is a compact and powerful PLC from the renowned SIMATIC S5 series. This S5-95U CPU integrates a comprehensive set of digital and analog I/O, counter functions, and interrupt capabilities into a single unit, making it a cost-effective solution for a variety of control applications. It is an industry benchmark for reliability and an ideal spare part for maintaining existing production lines. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Model: SIMATIC S5-95U CPU
• Power Supply: 24V DC
• Digital Inputs: 16 x 24V DC
• Digital Outputs: 16 x 24V DC, 0.5A per channel
• Analog Inputs: 8 channels, 0 to +10V
• Analog Outputs: 1 channel, 0 to +20mA
• High-Speed Counters: Integrated for 5kHz/2kHz operation
• Programming Interface: PG Port (TTY)

Label Info

• Manufacturer: Siemens
• Part Number (MLFB): 6ES5 095-8MA03
• Series: SIMATIC S5

Application

This PLC is perfectly suited for machine control, process automation, and manufacturing systems that were built using the SIMATIC S5 standard. It serves as a direct replacement part to minimize downtime and avoid costly system-wide upgrades.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid approximately 40.0 kg of CO2 emissions associated with the manufacturing of a new product. This choice supports a circular economy and sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. We specialize in providing obsolete and hard-to-find automation parts to keep your operations running smoothly.

FAQ

Question?

Can I program this S5-95U CPU with modern TIA Portal software?

No, the SIMATIC S5 series requires legacy programming software like STEP 5. It is not compatible with the modern TIA Portal platform, which is designed for the S7-1200, S7-1500, S7-300, and S7-400 series.

What is the function of the battery, and how do I know if it needs replacement?

The 3.6V lithium battery is crucial for retaining the user program in RAM when the PLC is powered off. The 'BATTERY OFF/LOW' LED on the front panel will illuminate to indicate a low or failed battery, signaling that it needs to be replaced to prevent program loss.

What communication interfaces does the 6ES5095-8MA03 have?

This CPU has a built-in PG (Programming Device) interface, which is a proprietary serial interface (TTY/20mA current loop) used for programming and diagnostics with a Siemens programmer or a PC running STEP 5 software.
