HMI Control Panel

Product Description

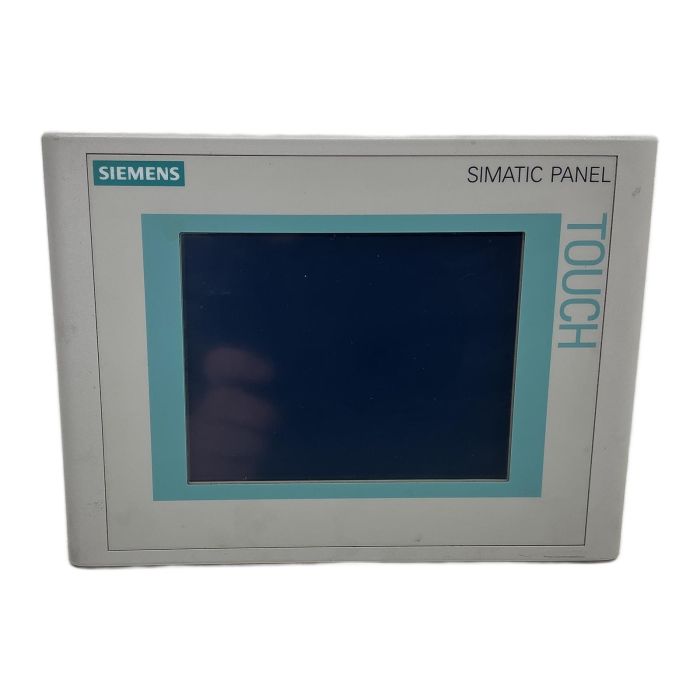

The Siemens SIMATIC TP177B DP-6 MSTN is a robust Human Machine Interface (HMI) touch panel designed for machine-level visualization and operation in industrial environments. This 5.7-inch monochrome touch panel provides a clear and intuitive interface for controlling and monitoring processes.

Product Specifications

- Manufacturer: Siemens
- Product Family: SIMATIC HMI
- Model: TP177B DP-6 MSTN
- Part Number: 6AV6 642-0BC01-1AX1
- Display: 5.7-inch STN monochrome touch screen
- Resolution: 320 x 240 pixels
- Power Supply: 24V DC
- Current Consumption: 0.5A max
- Interfaces: 1x RS422/485, 1x MPI/PROFIBUS DP, 1x USB
- Memory: Features a slot for a Multi Media Card (MMC) or SD Card for data backup and transfer.
- Enclosure Rating: Type 4X, Type 12 (Indoor use only)
- Country of Origin: Germany

Product Label Info

Model Code / Product Markings: 6AV6642-0BC01-1AX1

Application

This HMI control panel is suitable for machine-level visualization and operation in industrial environments.

Country of Origin

This product is manufactured in Germany.

Method of Application

Integrate seamlessly into existing automation systems for process control and monitoring.

Safety Instructions

Ensure proper grounding and follow all manufacturer guidelines for safe installation and operation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Siemens

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Siemens
• Explore similar products in Automation

Frequently Asked Questions

What is the HMI Control Panel used for?

This part is typically used in industrial environments for machine-level visualization and operation.

What are the key advantages of HMI Control Panel?

It provides a clear and intuitive interface for controlling and monitoring processes in industrial settings.

Is 6AV6642-0BC01-1AX1 compatible with my system?

If you're using Siemens control systems, especially the SIMATIC HMI series, then this model will likely be compatible. Contact us to verify.

Alternatives to 6AV6642-0BC01-1AX1

If you're looking for a similar part, consider exploring other Siemens HMI models that meet your specific requirements.

Can I sell my surplus stock to PLC2DAY?

Yes, absolutely. Contact us for more information on surplus stock recovery and resale options.
