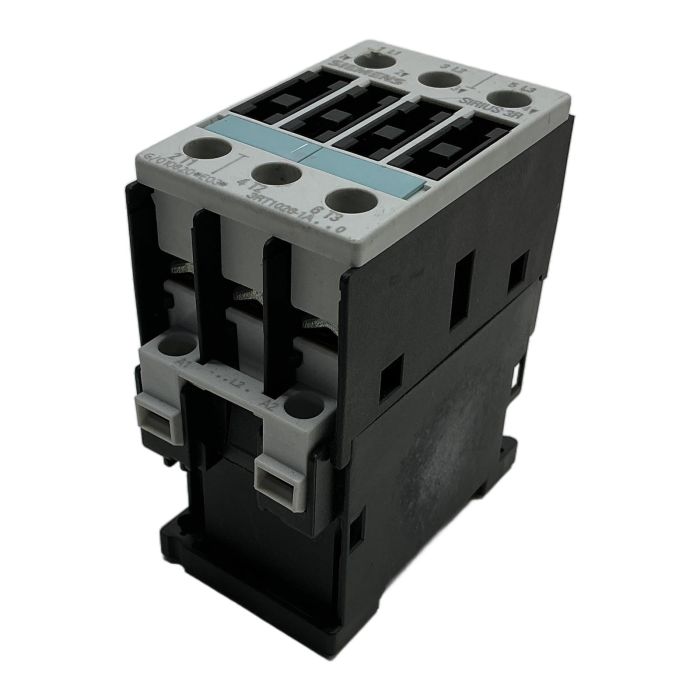

Siemens SIRIUS 3RT1026-1AP00 Power Contactor

Description

The Siemens 3RT1026-1AP00 is a robust 3-pole power contactor from the proven SIRIUS series. It is designed for switching electric motors and is rated for 11 kW at 400V AC. With a control voltage of 230V AC, this size S0 contactor is a standard component in industrial automation and control cabinets for reliable load switching. Its compact design and durable construction ensure a long service life.

Specifications

• Manufacturer: Siemens
• Product Series: SIRIUS
• Model: 3RT1026-1AP00
• Type: Power Contactor
• Size: S0
• Number of Poles: 3
• Rated Power (AC-3 at 400V): 11 kW
• Rated Operational Current (AC-3 at 400V): 25 A
• Control Supply Voltage: 230V AC at 50/60 Hz

Label Info

• IEC 60947 / VDE 0660
• Ui: 690 V
• le AC-1: 40 A
• EAN: 4011209337428

Application

This contactor is ideal for use in motor starter combinations, control panels, and automation systems for switching AC motors, heaters, and other resistive or inductive loads.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid 14.0 kg of CO2 emissions compared to a new purchase, supporting sustainable industrial practices.

Availability

This is an obsolete item, but it is available from our stock. The modern equivalent is the Siemens 3RT2026-1AP00. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 3RT2 series is the successor to the 3RT1. It offers a more compact design, higher power density, lower power consumption of the coil, and is part of the newer SIRIUS modular system, allowing for easier integration with modern overload relays and accessories.

Yes, while designed for 3-phase applications, it can be used for single-phase motors. To do so, you would typically wire the phases in series through the three main contacts to balance the load and ensure proper operation.

The size designation (e.g., S00, S0, S2) in Siemens SIRIUS contactors refers to the physical dimensions and power rating of the device. Size S0 is a common frame size that covers motor ratings up to approximately 15 kW, making it suitable for a wide range of standard industrial applications.
