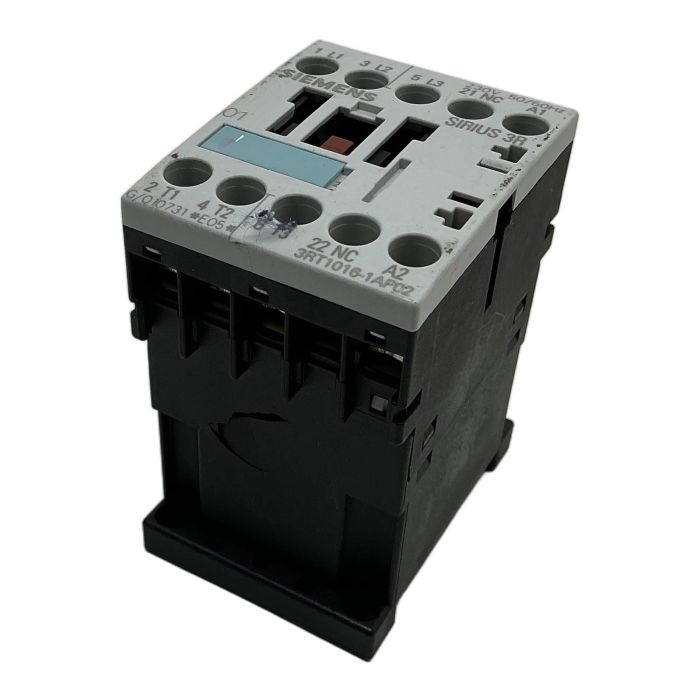

Siemens Contactor 9A 4kW 230V 3RT1016-1AP02

Description

The Siemens 3RT1016-1AP02 is a power contactor from the reliable SIRIUS series, designed for switching 3-phase motors. It is a compact size S00 device, making it ideal for space-constrained control cabinets. This contactor ensures safe and dependable operation in a wide range of industrial applications, from simple motor controls to complex automated systems.

Specifications

• Manufacturer: Siemens
• Product Line: SIRIUS
• Type Number: 3RT1016-1AP02
• Product Type: Power Contactor
• Size: S00
• Number of Poles: 3-Pole
• Control Coil Voltage: 230V AC at 50/60 Hz
• AC-3 Rated Power (400V): 4 kW
• AC-3 Rated Current (400V): 9 A
• Integrated Auxiliary Contacts: 1 NC (Normally Closed)
• Termination Type: Screw Terminals

Label Info

• Standard: IEC 60947 / VDE 0660
• Ui (Rated Insulation Voltage): 690V
• Ie (AC-1): 22 A
• EAN: 4011209272699

Application

This contactor is primarily used for switching industrial loads, particularly electric motors. It is suitable for applications such as controlling pumps, fans, compressors, conveyors, and other machinery requiring direct-on-line starting.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused contactor, you contribute to the circular economy and prevent the emission of approximately 7.0 kg of CO2. This saving is comparable to the emissions from driving a standard car for 35 kilometers.

Availability

This item is in stock and ready for immediate dispatch. As an obsolete model, availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary differences are in design and efficiency. The 3RT2 series is more compact, has a wider operating temperature range, and offers better energy efficiency. However, for direct replacement in existing systems, the 3RT1016-1AP02 provides identical electrical ratings and physical mounting, ensuring a seamless fit without panel modifications.

Yes, you can. For single-phase applications, it is common practice to wire the main contacts in series to share the load, which can enhance the lifespan of the contacts. Please consult the official Siemens documentation for correct wiring diagrams for single-phase motor control.

The size designation (e.g., S00, S0, S2) in Siemens SIRIUS contactors refers to the physical dimensions and the current/power rating of the device. Size S00 is the most compact size in the series, typically used for controlling smaller motors up to approximately 4 kW (at 400V AC). This standardization helps in panel design and component selection.
