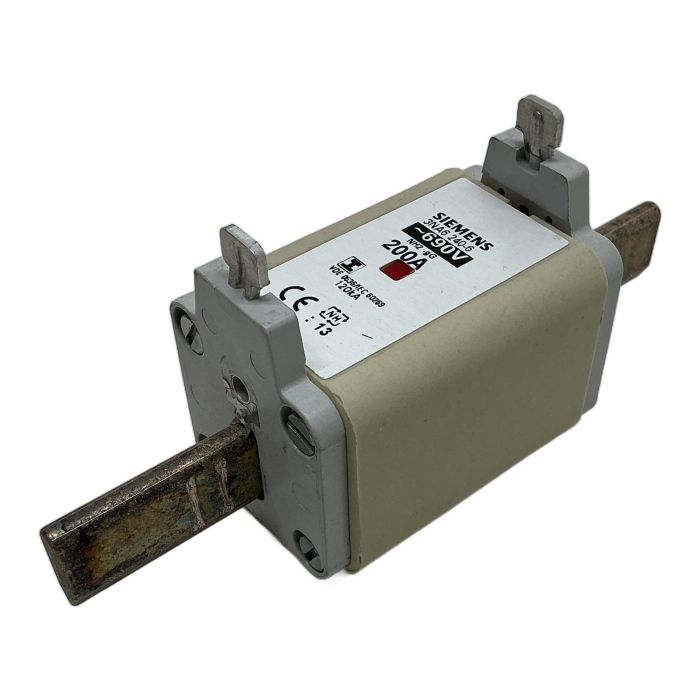

Siemens 3NA6 240-6 LV HRC Fuse Link

Description

The Siemens 3NA6 240-6 is a high-quality LV HRC (Low Voltage High Rupturing Capacity) fuse link from the SENTRON series. It is designed to provide dependable overcurrent protection for industrial installations, cables, and lines. With a rated current of 200A and a rated voltage of 690V AC, this fuse is suitable for demanding applications. Its gG characteristic makes it ideal for general-purpose protection, and the built-in front indicator allows for quick identification of a blown fuse.

Specifications

• Manufacturer: Siemens
• Type Number: 3NA6 240-6
• Rated Current (In): 200 A
• Rated Voltage (Un): 690V AC / 440V DC
• Fuse System / Size: NH2
• Operating Class: gG
• Breaking Capacity: 120 kA
• Indicator: Front indicator
• Standards: VDE 0636/21, IEC/EN 60269

Label Info

• Siemens 3NA6 240-6
• ~690V 200A
• 120kA gG

Application

This fuse link is commonly used in industrial switchgear, power distribution boards, and motor control centers to protect against short circuits and overloads.

Country of Origin

Made in Greece (GR).

CO2 Impact

Opting for this component helps avoid 10.6 kg of CO2 emissions compared to a new production, supporting sustainable industrial practices.

Availability

This item is an obsolete part but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'gG' classification indicates a general-purpose fuse link intended for cable and line protection. It can interrupt currents from the smallest melting current up to its maximum breaking capacity.

No, 'gG' fuses are generally too slow to protect sensitive semiconductors like thyristors or IGBTs. For such applications, a fuse with a 'gR' or 'aR' (semiconductor protection) characteristic is required.

The red pin is a trip indicator. If the fuse blows due to an overcurrent or short circuit, this pin pops out. This provides a clear visual signal of the faulty fuse and can also be used to actuate a microswitch for remote signaling in a compatible fuse base.
