Siemens LV HRC Fuse Link 200A 3NA6 240-6

Description

The Siemens 3NA6 240-6 is a high-quality LV HRC (Low Voltage High Rupturing Capacity) fuse-link designed for reliable circuit protection in industrial environments. This size NH2 fuse provides robust protection against both overloads and short circuits, ensuring the safety and longevity of your equipment. With a rated current of 200A and a high breaking capacity, it is suitable for demanding applications in power distribution and control systems.

Specifications

• Manufacturer: Siemens
• Part Number: 3NA6 240-6
• Product Type: LV HRC Fuse-Link
• Size: NH2
• Rated Current: 200A
• Rated Voltage (AC): 690V
• Rated Voltage (DC): 440V
• Utilization Category: gG (General purpose line protection)
• Breaking Capacity: 120kA

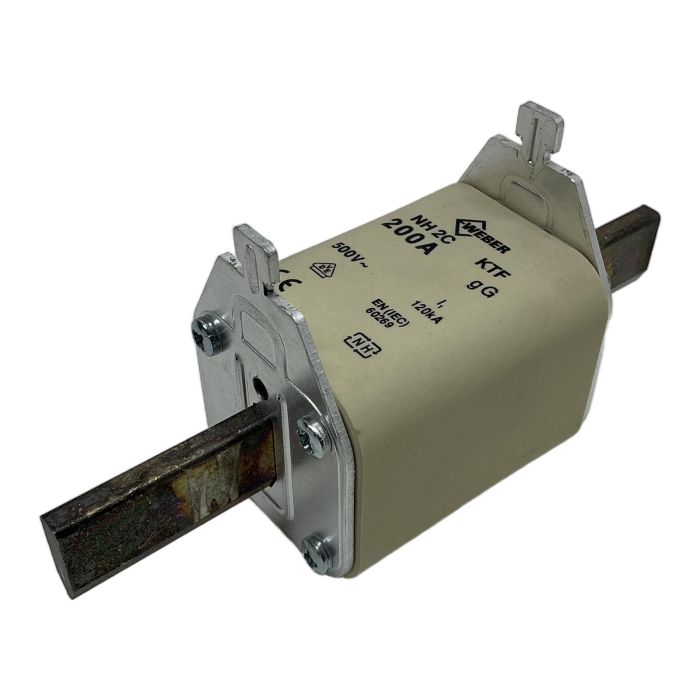

Label Info

• Brand: Weber (on fuse body) / Siemens (on packaging)
• Model: NH 2C KTF
• Current: 200A
• Voltage: 500V~ (on fuse body)
• Standard: EN(IEC) 60269

Application

This fuse is ideal for protecting main power distribution boards, motor control centers, and other critical electrical installations in manufacturing plants, commercial buildings, and infrastructure projects. Its gG characteristic makes it versatile for protecting cables and general equipment.

Country of Origin

Made in Greece (GR).

CO2 Impact

Reusing this component saves approximately 18.24 kg of CO2, contributing to a more sustainable industrial operation by avoiding the emissions from new production.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock item in its original, opened packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'gG' designation indicates a general-purpose, full-range breaking capacity fuse. It is designed to protect against both overload (the 'g' part) and short-circuit currents (the second 'g' part). This makes it suitable for a wide range of applications, including protecting cables, lines, and general industrial equipment.

The Siemens part number 3NA6 240-6 is officially rated for 690V AC. While the fuse body might be a component also used for 500V applications (as marked by Weber), the complete assembly as specified by Siemens meets the 690V rating. It is crucial to always adhere to the specifications on the official packaging and datasheet provided by the primary manufacturer, which in this case is Siemens.

This fuse has a breaking capacity of 120kA (kiloamperes). This is a critical safety specification that indicates the maximum short-circuit current the fuse can safely interrupt without rupturing or causing a hazard. A 120kA rating is very high, making this fuse suitable for industrial systems where fault currents can be extremely large.
