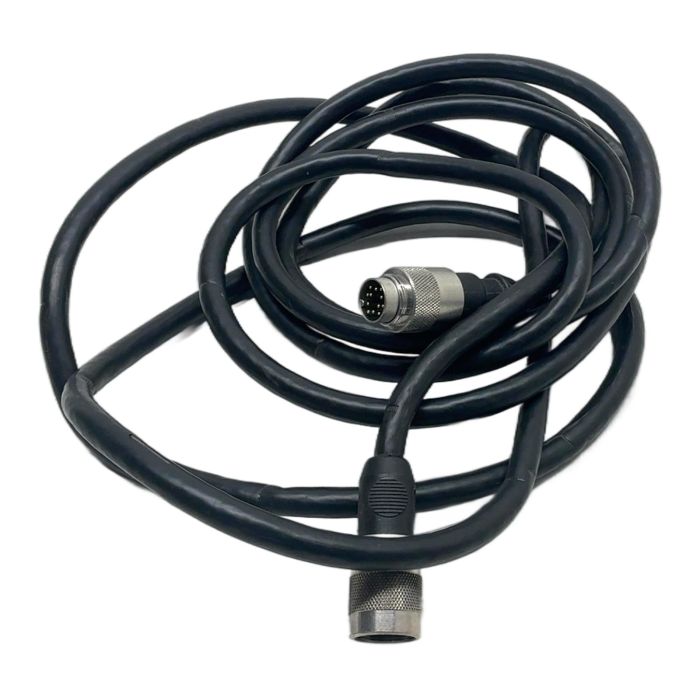

Sick Encoder Extension Cable 8-Pin M23 DOL-2308-G03MAA3

Description

This is a pre-assembled signal and extension cable from Sick, designed for robust performance in industrial settings. The DOL-2308-G03MAA3 provides a reliable connection for encoders and other compatible components, featuring industry-standard M23 8-pin connectors. The PUR outer jacket ensures durability and resistance to oils and chemicals, making it suitable for a wide range of automation applications.

Specifications

• Manufacturer: Sick
• Part Number: DOL-2308-G03MAA3
• Sick ID: 2076939
• Connection Type Head A: Female connector, M23, 8-pin, straight
• Connection Type Head B: Male connector, M23, 8-pin, straight
• Cable Length: 3 m (assumed based on visual inspection)
• Jacket Material: PUR (Polyurethane)
• Shielding: Shielded
• IP Rating: IP67 (when mated)

Application

Ideal for extending the connection between a servo drive, controller, and an encoder, particularly in motion control systems. Its robust construction makes it suitable for applications in machine building, robotics, and automated manufacturing lines.

Country of Origin

Manufactured in Germany.

CO2 Impact

By choosing this refurbished cable, you are helping to prevent the emission of approximately 7.5 kg of CO2. This saving is comparable to the emissions from driving a car for 37 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the PUR (polyurethane) outer jacket and the overall construction of Sick's DOL-2308 series cables are designed for high flexibility and resistance to oils and abrasion, making them suitable for use in drag chains. However, always check the specific bending radius and cycle count ratings in the datasheet for your application.

When both M23 connectors are properly screwed together and tightened, the connection achieves an IP67 rating. This means it is fully protected against dust ingress and can withstand temporary immersion in water.

While the cable is designed for Sick encoders, it may be compatible with encoders from other manufacturers that use a standard 8-pin M23 connector with a matching pinout. It is crucial to verify the pin-to-pin wiring diagram of both the encoder and the cable to prevent damage to your equipment. Pin assignments can vary between brands.
