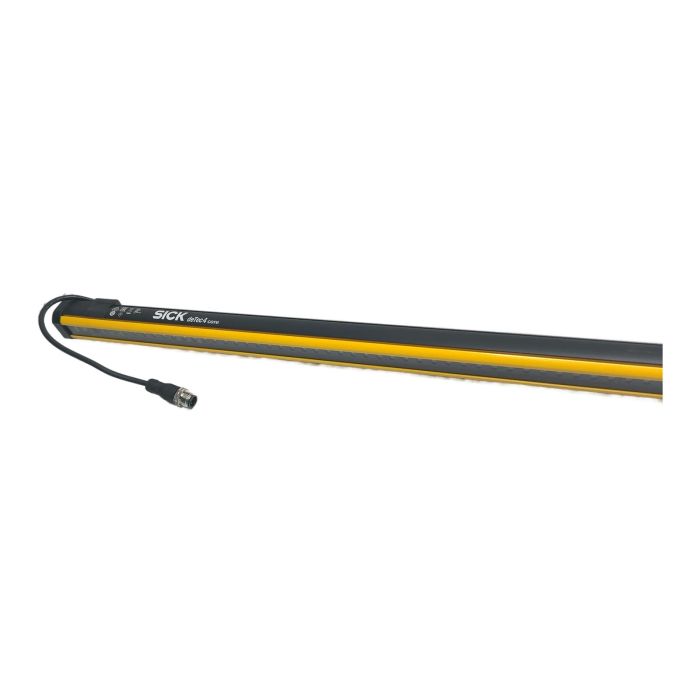

SICK deTec4 Core Safety Light Curtain Sender

Description

This is the C4C-SA16510A10000 sender unit for the SICK deTec4 Core safety light curtain system. It provides reliable and cost-effective protection for hazardous areas and access points. Engineered for performance, it meets the highest safety standards, including Type 4 (IEC 61496) and PL e (EN ISO 13849). This unit is designed for simple integration, requiring no software configuration for its core functions.

Specifications

• Manufacturer: SICK
• Model: C4C-SA16510A10000
• Part Number: 1211484
• Product Series: deTec4 Core
• Component: Sender
• Resolution: 10 mm (Finger protection)
• Protective Field Height: 1650 mm
• Scanning Range: 0 m to 10 m
• Connection Type: M12 male connector, 5-pin
• Enclosure Rating: IP65, IP67

Label Info

• Type: C4C-SA16510A10000
• P/N: 1211484
• S/N: 19320045

Application

Ideal for presence detection at hazardous points, access guarding on production lines, and general machine safety in industries such as automotive, packaging, logistics, and electronics manufacturing.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component prevents approximately 72.0 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The sender (SA, from German 'Sender') emits the infrared light beams, while the receiver (EA, from German 'Empfaenger') detects them. They must be used together as a pair to create a functional safety light curtain. This product is the sender unit only.

No, the deTec4 Core series is designed for standalone applications and does not support cascading. For cascading functionality, you would need to look at the deTec4 Prime or deTec4 Pro series from SICK.

This light curtain has an IP65 and IP67 rating, which means it is dust-tight and protected against water jets and temporary immersion. While it is very robust, for aggressive washdown environments with high-pressure jets or chemicals, a product with a higher rating like IP69K might be more suitable.
