SEW Eurodrive Helical Worm Geared Motor 0.75kW SA67 DRS80S4BE1HR

Description

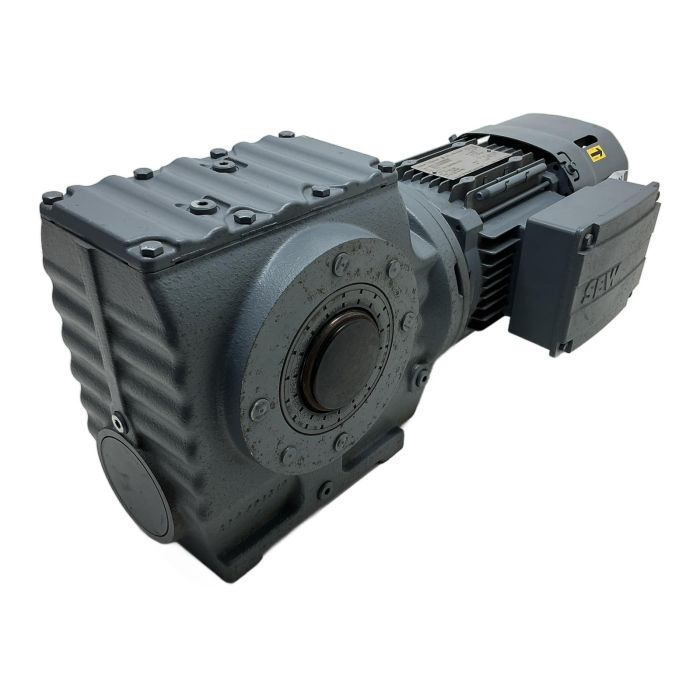

This is a high-quality helical-worm geared motor from SEW Eurodrive, model SA67 DRS80S4BE1HR. It combines a 0.75 kW AC motor with a robust SA67 helical-worm gearbox to deliver an output speed of 10 RPM. The unit includes an integrated 400V AC brake providing 10 Nm of holding torque and features a manual brake release (HR) for maintenance and setup. Its hollow shaft design allows for flexible integration into various machinery.

Specifications

• Manufacturer: SEW Eurodrive
• Type: SA67 DRS80S4BE1HR
• Power: 0.75 kW
• Voltage: 220-242 / 380-420 V (50Hz)
• Current: 3.15 / 1.82 A (50Hz)
• Frequency: 50 / 60 Hz
• Output Speed: 10 RPM (at 50Hz)
• Gear Ratio (i): 134.40
• Brake Voltage: 400V AC
• Brake Torque: 10 Nm
• Protection Class: IP54
• Insulation Class: 130(B)
• Weight: 37.00 kg

Label Info

• Serial Number: 91.1702069001.0001.11
• Lubricant: CLP PG 680 SynthOil / 2.90 L
• Rectifier: BG1.5

Application

This geared motor is ideal for applications requiring high torque at low speeds, such as conveyor systems, mixers, agitators, and other material handling equipment in various industrial settings.

Country of Origin

Made in Holland.

CO2 Impact

By purchasing this pre-owned unit, you are preventing the emission of approximately 74.0 kg of CO2. This is equivalent to the savings from driving a car for 370 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What type of lubricant is required for the SA67 gearbox and is it included?

The nameplate specifies CLP PG 680 Synthetic Oil, with a volume of 2.9 Liters. The unit is typically shipped pre-filled from the factory, but it is crucial to verify the oil level and condition before commissioning, especially for a used unit.

The manual brake release is designed for service, setup, or emergency situations without power. It should not be used to stop a moving load. Always ensure the driven machine is secured against unintended movement before engaging the manual release.

Yes, the SEW DRS series AC motor is generally compatible with VFDs. However, for continuous operation at low speeds, forced cooling (an external fan) might be necessary to prevent overheating. Also, ensure the VFD is configured correctly for the motor's voltage, current, and brake control parameters (400V AC brake).
