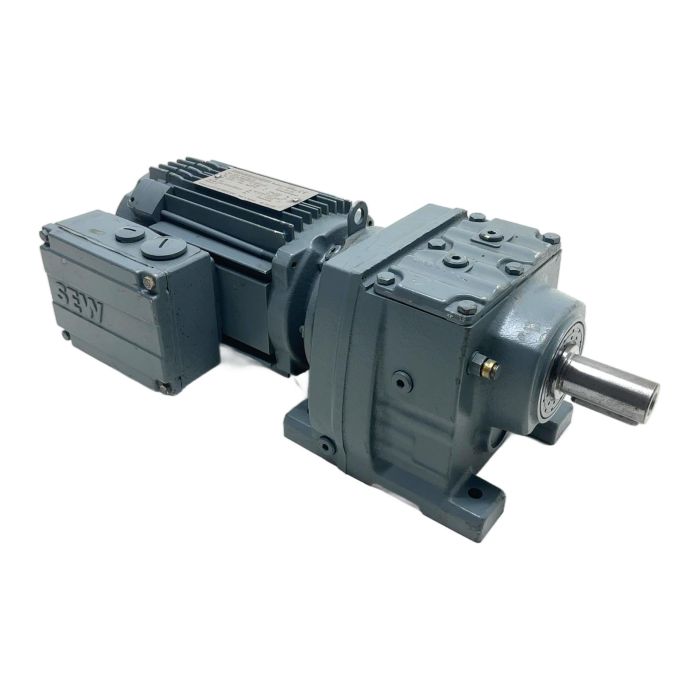

SEW-Eurodrive R37 DY71S/TH Helical Gearmotor

Description

This is a helical gearmotor from SEW-Eurodrive, model R37 DY71S/TH. It integrates a high-speed permanent magnet synchronous motor with a robust R37 helical gearbox. This unit is designed for applications requiring high dynamics and precise control. With a calculated power of 1.18 kW and an output speed of 380 rpm, it's a powerful and reliable solution for industrial automation.

Specifications

• Manufacturer: SEW-Eurodrive
• Type: R37 DY71S/TH
• Motor Power: 1.18 kW (calculated from torque and speed)
• Motor Type: DY71S/TH (Permanent Magnet Synchronous)
• Input Speed: 4500 r/min
• Output Speed: 380 r/min
• Gear Ratio (i): 11.83 : 1
• Voltage: 400 V
• Nominal Frequency: 225 Hz
• Nominal Current (Io): 2.80 A
• Max Current (Imax): 8.40 A
• Protection Rating: IP65
• Insulation Class: F
• Mounting Position: IM M1
• Weight: 16.57 kg

Label Info

• Typ: R37 DY71S/TH
• Nr: 01.3070826104.0001.02
• Mo 2.50 Nm / Io 2.80 A
• nN 4500 r/min / Imax 8.40 A
• U max 400V / fN 225 Hz
• Schmierstoff: CLP 220 MINER.OL/0,30 L

Application

This gearmotor is ideal for applications in logistics, material handling, packaging machinery, and general automation systems where precise and dynamic speed control is essential.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned gearmotor saves an estimated 331.4 kg of CO2 compared to manufacturing a new one. This is equivalent to driving a standard car for over 1650 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This is a permanent magnet synchronous motor, which requires a specific servo drive capable of controlling such motors. It would typically be paired with an SEW-Eurodrive Movidrive or similar series inverter that supports synchronous motor control and can handle the 400V/225Hz specification.

The high nominal frequency of 225 Hz is directly related to its high nominal speed of 4500 rpm. This indicates the motor is designed for high-speed applications and must be operated with a variable frequency drive (VFD) that can output this frequency, as standard mains are only 50/60 Hz.

The mounting position specified as IM M1 (foot-mounted, horizontal shaft) is determined by the gearbox design and lubricant fill level. While some gearboxes support universal mounting, changing from the specified M1 position may require adjusting the oil level or breather plug position. Always consult the manufacturer's documentation before operating in a different orientation.
