SEW-Eurodrive R27 DY71S/B/TH Geared Servomotor with Brake

Description

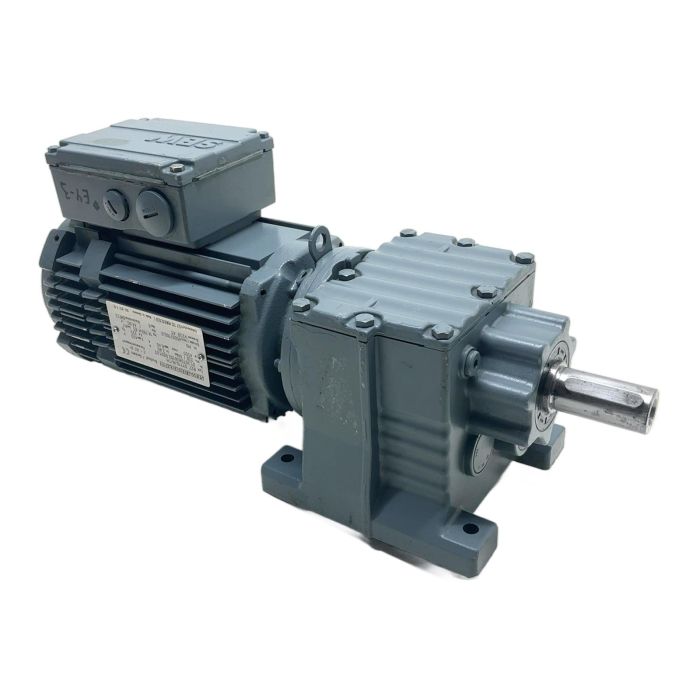

This is a high-performance geared motor from SEW-Eurodrive, designed for demanding automation tasks. The unit combines a permanent magnet synchronous motor (DY71S) with a robust R27 helical gearbox and an integrated safety brake. It provides precise motion control with an output speed of 100 rpm and a continuous torque of 2.5 Nm. Its IP65 rating ensures protection against dust and water ingress, making it suitable for various industrial environments.

Specifications

• Manufacturer: SEW-Eurodrive
• Type: R27 DY71S/B/TH
• Motor Type: Permanent Magnet Synchronous Motor
• Gearbox Type: Helical Gearbox R27
• Rated Torque (Motor): 2.50 Nm
• Rated Motor Speed: 4500 r/min
• Output Speed: 100 r/min
• Gear Ratio: 44.90:1
• Max Voltage: 400V
• Rated Frequency: 225 Hz
• Brake: 230V AC / 6 Nm
• Protection Class: IP65
• Insulation Class: F
• Mounting Position: IM M6

Label Info

• Serial Nr: 01.3070826102.0001.02
• Weight: 14.780 kg
• Rectifier: BME1.5
• Lubricant: CLP 220 MINER.OL/0,50 L

Application

Ideal for applications requiring precise speed and position control, such as material handling, packaging machinery, robotics, and automated assembly lines.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned unit, you help avoid the 97.2 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DY71S is a permanent magnet synchronous servomotor. It requires a compatible servo drive or frequency inverter with synchronous motor control capabilities, such as an SEW-Eurodrive MOVIDRIVE or MOVIAXIS series drive. It cannot be run directly from a standard 3-phase mains supply.

The brake requires a separate 230V AC supply. It is typically controlled via the servo drive's brake output through a brake rectifier, like the specified BME1.5. When power is applied, the brake releases; when power is removed, the brake engages. Ensure the control logic is correctly implemented for safe operation.

Yes, SEW-Eurodrive gear motors are designed for various mounting positions. However, changing the mounting position from the specified IM M6 might require adjusting the oil level in the gearbox to ensure proper lubrication. Always consult the official SEW-Eurodrive documentation for the correct oil fill levels for different mounting positions to prevent damage.
