SEW-EURODRIVE Terminal Block for AC Motors

Description

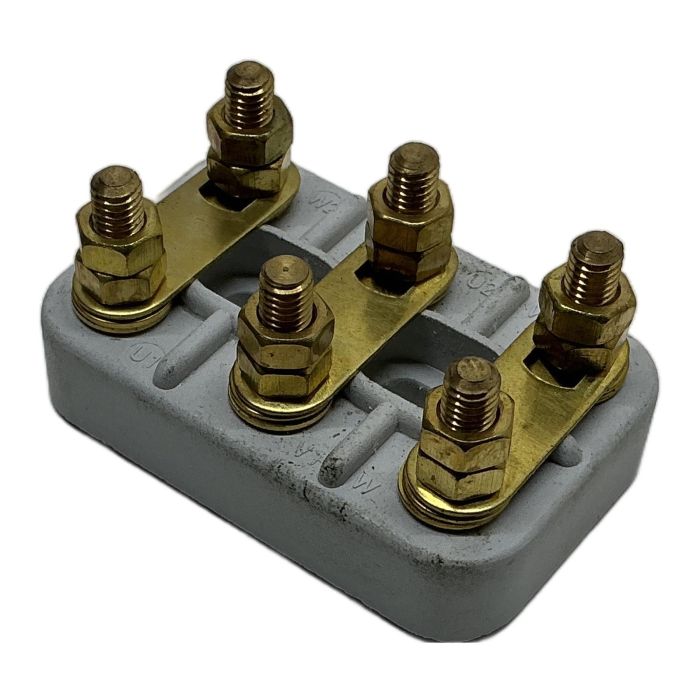

This is a genuine replacement terminal block, part number 01869806, from SEW-EURODRIVE. It is specifically designed for three-phase AC motors with frame sizes ranging from BG71 to BG100. The block features a durable insulating base with six terminal studs, allowing for standard star (Y) or delta wiring configurations. This component is essential for establishing a secure and safe electrical connection to your SEW motor.

Specifications

• Manufacturer: SEW-EURODRIVE
• Part Number: 01869806
• Product Type: Motor Terminal Block
• Number of Poles: 6
• Compatible Motor Frame Sizes: BG71, BG80, BG90, BG100
• Includes: Base, studs, nuts, washers, and 3 connection links

Label Info

The packaging label indicates the following internal details:

• Internal Part ID: 103687
• Description: AANSLUITPLAATJE SEW RF37DT80K4 NIPPON
• Internal Code: ELEC-1-C

Application

This terminal block is used as a direct replacement part in the terminal box of various SEW-EURODRIVE asynchronous motors. It is crucial for maintenance and repair to restore the motor's original wiring integrity and operational safety.

Country of Origin

Germany

CO2 Impact

Choosing this reused component over a new one saves approximately 6.0 kg of CO2. This is comparable to the emissions saved by not driving a car for 30 kilometers, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this terminal block compatible with a DT90L4 motor?

Yes, the DT90L4 motor has a frame size of 90, which is within the BG71 to BG100 range this terminal block is designed for.

For the M5 studs typically used on this block size, SEW generally recommends a tightening torque of around 2.0 Nm. However, always refer to the specific motor's operating manual for the exact value to ensure a secure connection without damaging the studs.

This block is specifically designed for three-phase motors with its 6-terminal layout (U1, V1, W1, U2, V2, W2) for star or delta wiring. It is not suitable for standard single-phase motor connections.
