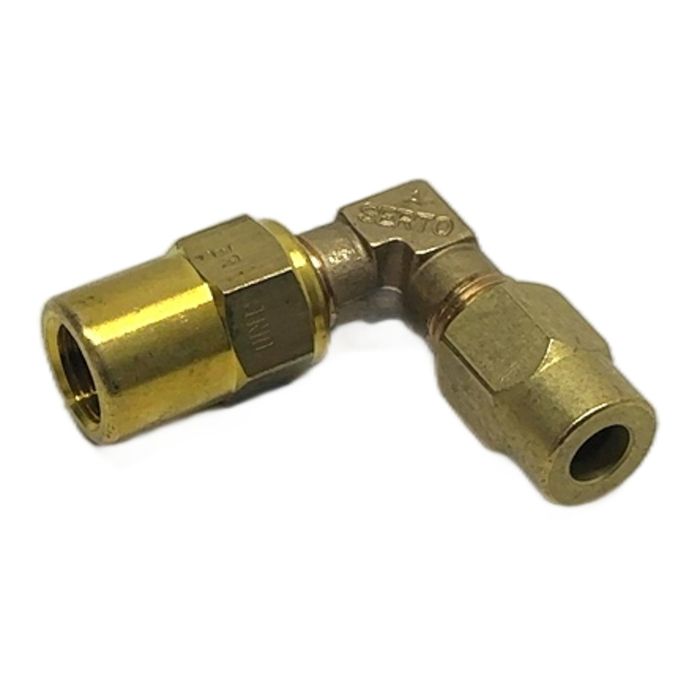

SERTO Swivel L-Union Male Brass Fitting

Description

This is a Swivel L-Union Male Fitting, part number SO 02221-6-1/8, from the reputable manufacturer SERTO. Constructed from high-grade brass, it is designed to provide a secure and reliable 90-degree connection between a 6mm outer diameter tube and a G 1/8 inch female threaded port. The swivel function allows for easy alignment and installation in complex piping systems.

Specifications

• Manufacturer: SERTO
• Part Number: SO 02221-6-1/8
• Alternative Part Number: 29.2201.100
• Type: Swivel L-Union, Male Thread
• Material: Brass
• Connection 1: For 6 mm Outer Diameter Tube (Compression)
• Connection 2: G 1/8 inch Male Thread
• Operating Pressure: Up to 100 bar (depending on tube and temperature)

Label Info

• Material Code: Messing G / Laiton G / Brass G
• Pack Date: 08.01.2019

Application

Ideal for use in pneumatics, hydraulics, instrumentation, laboratory equipment, and general fluid transfer systems where a robust and leak-proof right-angle connection is required.

Country of Origin

Manufactured by SERTO AG in Switzerland.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and have helped avoid approximately 0.1 kg of CO2 emissions associated with the production of a new part. This saving is equivalent to charging a smartphone 12 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The pressure rating depends on the tube material and operating temperature. For a 6mm brass tube at 20 deg C, this fitting is typically rated for up to 100 bar (10 MPa). Always consult the SERTO technical documentation for your specific application.

Yes, brass fittings like this are compatible with a wide range of media, including water, oil, and various gases, provided they are chemically compatible with brass. It is crucial to verify the chemical compatibility of your medium with brass before installation.

For a correct assembly, ensure the tube is cut squarely and is free of burrs. Insert the tube into the fitting until it bottoms out. Tighten the nut by hand, then use a wrench to tighten it a further 1 to 1.25 turns. Overtightening can damage the ferrule and the tube, compromising the seal.
