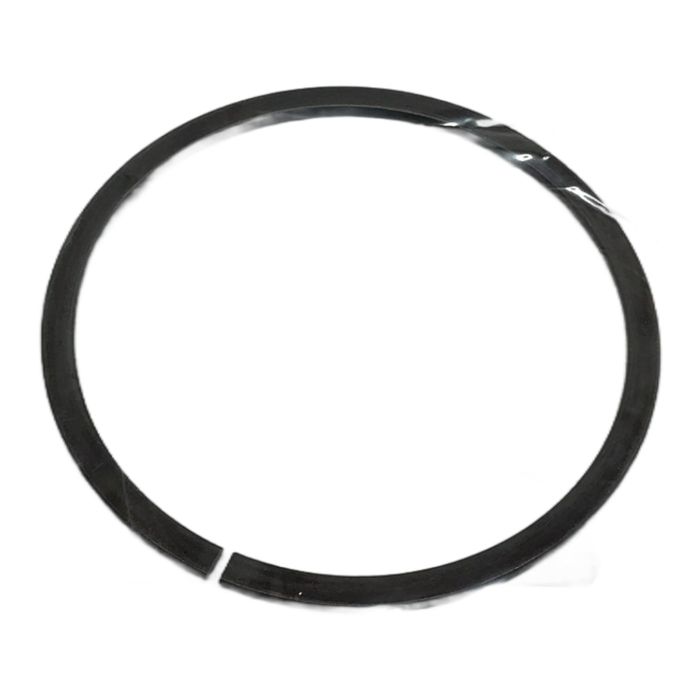

Seeger SP 130 Spiral Retaining Ring

Description

The Seeger SP 130 is a high-performance internal spiral retaining ring designed for installation in a 130 mm housing bore. Manufactured by Seeger-Orbis, a leader in fastening technology, this ring provides a secure, reliable shoulder for retaining bearings, gears, and other components within an assembly. Its unique coiled design offers 360-degree contact with the groove, ensuring uniform load distribution and eliminating the need for installation lugs, which saves radial space.

Specifications

• Manufacturer: Seeger
• Part Number: SP 130
• Type: Internal Spiral Retaining Ring
• Nominal Bore Diameter: 130 mm
• Material: Carbon Spring Steel

Application

Ideal for use in various industrial applications, including automotive transmissions, gearboxes, electric motors, and hydraulic systems where a compact and reliable retaining method is required.

Country of Origin

This product is manufactured in Germany, ensuring high standards of quality and precision engineering.

CO2 Impact

By choosing this pre-owned component, you are contributing to a circular economy and preventing the emission of approximately 0.05 kg of CO2 that would be required for the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A spiral retaining ring like the SP 130 is coiled from flat wire and has no protruding lugs or ears. This provides 360-degree contact with the groove, a more uniform load distribution, and often allows for a more compact and aesthetically pleasing design compared to traditional snap rings which have lugs for installation pliers.

The Seeger SP 130 is typically manufactured from high-quality carbon spring steel (such as SAE 1060-1090). This material is chosen for its excellent spring properties, allowing the ring to be compressed for installation and then expand back to its original shape to seat securely in the groove, providing high thrust load capacity.

While it's possible to install spiral rings by hand by winding them into the groove, it is not recommended, especially for larger sizes like 130mm. Specialized installation tools are available that compress the ring and guide it into the housing groove safely and without causing damage or overstressing the ring. For removal, the ring can be unwound from the groove using a small flat-bladed tool at the removal notch.
