Schneider Electric Telemecanique Safety Light Curtain Set

Description

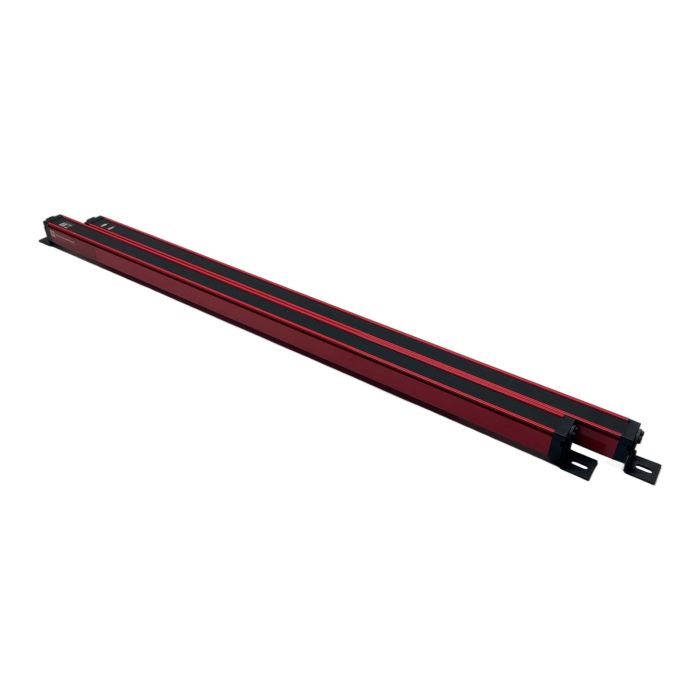

This is a complete transmitter and receiver set of the Schneider Electric XUS-L series safety light curtains. This Type 2 safety device is engineered for machine guarding applications, offering reliable presence detection to protect personnel from hazards. With a protected height of 750mm and a resolution of 30mm, it is suitable for finger and hand protection. The units operate on a standard 24V DC supply and are housed in rugged IP65-rated enclosures for industrial use.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Telemecanique Sensors
• Models: XUS-LNG5E0750T (Transmitter) & XUS-LNG5C0750R (Receiver)
• Protected Height: 750 mm
• Resolution (Detection Capability): 30 mm
• Operating Range: 0.3 to 15 meters
• Safety Integrity: ESPE Type 2
• Power Supply: 24 V DC +/- 20%
• IP Rating: IP65
• Operating Temperature: 0 to 55 deg C

Application

Ideal for creating a virtual safety barrier around hazardous machinery such as presses, packaging machines, assembly lines, and robotic cells where operator access is required.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid 64 kg of CO2 emissions associated with the production of a new one.

Availability

This set is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'T' model (XUS-LNG5E0750T) is the Transmitter (Emitter) which sends out the infrared light beams. The 'R' model (XUS-LNG5C0750R) is the Receiver which detects the beams. Both are required to create a functional safety curtain.

This is a Type 2 safety device as clearly indicated on the label. Type 2 devices are suitable for lower-risk applications where an injury would be slight. For high-risk applications where severe injury or death is possible, a Type 4 device is required.

The maximum operating distance (sensing range) is 15 meters, as limited by the receiver's specification (0.3-15m). This provides flexibility for guarding both small and large machine access points.
