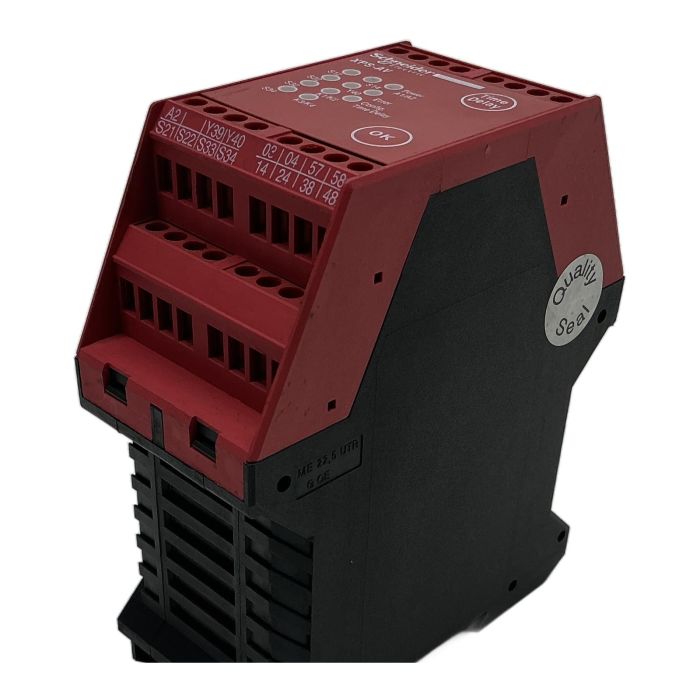

Schneider Electric Preventa Safety Relay XPSAV11113

Description

The Schneider Electric XPSAV11113 is a Preventa series safety relay module designed for monitoring emergency stop circuits and safety switches. Operating on a 24V DC supply, it ensures reliable machine safety in compliance with international standards. This module features time-delayed safety outputs, configurable via a rotary switch, making it adaptable to various applications. As an obsolete part, it is essential for maintaining and repairing existing automation systems without requiring a complete overhaul.

Specifications

• Manufacturer: Schneider Electric
• Series: Preventa
• Model: XPSAV11113
• Supply Voltage: 24V DC (-20% / +20%)
• Safety Outputs: 3 NO (Normally Open)
• Signaling Outputs: 1 NC (Normally Closed)
• Utilization Category AC-15: 230V AC / 0.75A
• Utilization Category DC-13: 24V DC / 1.5A
• Response Time: < 30ms
• Terminals: Screw Clamp Terminals

Label Info

• Ref.: XPSAV11113
• HW-Rev: 1.00
• SW-Rev: 4.00

Application

This safety relay is ideal for applications requiring emergency stop functionality, safety gate monitoring, and other safety-critical circuits in manufacturing, packaging, and material handling systems.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help avoid approximately 8.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This is an obsolete item, available as a spare part. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

The rotary switch is used to configure the time delay for the safety outputs. This model, the XPSAV, specifically features a variable time delay function which can be adjusted according to the application's requirements.

While functionally similar for emergency stop applications, the XPSAV11113 has different wiring, physical dimensions, and certifications compared to the older XPS-AL series. It is crucial to consult the user manual for both devices to ensure correct migration and wiring before replacement.

The XPSAV11113 is primarily designed for monitoring emergency stop pushbuttons and safety switches (Category 4 according to EN 954-1/ISO 13849-1). For light curtains, which often require specific OSSD (Output Signal Switching Device) monitoring, a dedicated light curtain safety module is typically recommended. Always verify the light curtain's output requirements.
