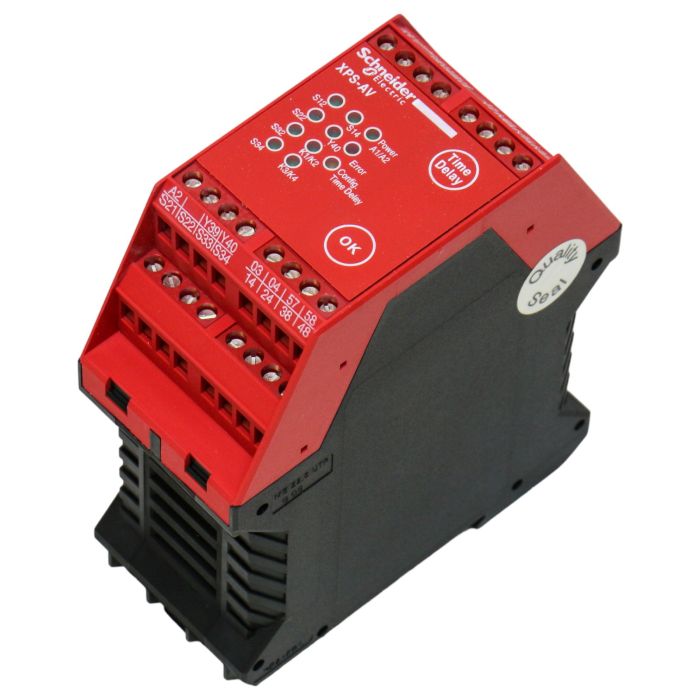

Preventa Safety - Safety module - Emergency stop - 24V DC - Time delay 0-300s: Specifications, Head, range of product, Preventa Safety automation, product or component type, Preventa safety module, safety module name, XPSAV, safety module application, For emergency stop and gear control, function module, Emergency stop button with 2 NC contacts, controlled start, Emergency stop control 2-channel wiring, Control movable protection with 2 automatic start switches, Emergency stop button with 1 NC contact, automatic or uncontrolled start, Emergency stop control 1-channel wiring, safety level, Can reach PL e/category 4 conforming to EN/ISO 13849-1, Can reach SILCL 3 conforming to EN/IEC 62061, reliability data safety, DC > 99 % conforming to EN/ISO 13849-1, MTTFd = 75.8 years conforming to EN/ISO 13849-1, PFHd = 7.95E-9 1/h conforming to EN/IEC 62061, start type, Configurable, connections - terminals, Fixed screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double grooved ring, Fixed screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double grooved ring, Fixed screw terminal connections, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double grooved ring, Fixed screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double grooved ring, Fixed screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double grooved ring, Fixed screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double grooved ring, Fixed screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double grooved ring, Fixed screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double grooved ring, output type, Relay opens immediately, 3 NO circuit(s), voltage-free, Relay opening delay, 3 NO circuit(s), voltage-free, number of additional circuits, 3 solid state outputs, Us rated supply voltage, 24 V DC - 20...20 %, Complementary, synchronization time tssn inputs, 1.5 s for the guard, Unlimited for emergency stop, maximum energy consumption in W, 5W DC, security type input, Internal, electronic, time delay range, 0...300 s, voltage control circuit, 24VDC, Maximum line resistance, 100 Ohm <2000 m, breaking capacity, 180 VA holding AC-15 C300 relay output, 1800 VA incoming AC-15 C300 relay output, breaking capacity, 20 mA at 24 V, 1.25 A at 24 V (DC-13) time constant: 50 ms for relay output, thermal current output, 2 A for 1 output and 4 A for the 2 other outputs for immediate and delayed outputs, 3.3A for all outputs for immediate and delayed outputs, 6 A for 1 output and 2 A for the 2 other outputs for immediate and delayed outputs, Ith conventional thermal flow in free air, 20 A, associated fuse rating, 4 A gG or gL for immediate and delayed outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 6 A fast burn conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, minimum output current, 10 mA for relay output, minimum output voltage, 17 V for relay output, Maximum response time on input open, 30ms, Ui nom insulation voltage, 300 V (pollution degree 2) conforming to IEC 60947-5-1, 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, Uimp assigned shock wave voltage, 4 kV overvoltage category III conforming to IEC 60947-5-1, 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, local signaling, 11 LEDs, mounting support, 35mm symmetrical DIN rail, net weight, 0.32kg, Environment, standards, EN/ISO 13850, EN 1088/ISO 14119, EN/IEC 60947-5-1, EN/IEC 60204-1, product certifications, UL, TÜV, CSA, IP degree of protection, IP20 (terminals) conforming to EN/IEC 60529, IP40 (housing) conforming to EN/IEC 60529, ambient air temperature for operation, -10…55 °C, ambient air temperature for storage, -25…85 °C

• Specifications:
  • Head: XPSAV11113
  • Range of product: Preventa Safety
  • Preventa Safety automation
  • Product or component type: Preventa safety module
  • Safety module name: XPSAV
  • Safety module application: For emergency stop and gear control
• Function module:
  • Emergency stop button with 2 NC contacts, controlled start
  • Emergency stop control 2-channel wiring
  • Control movable protection with 2 automatic start switches
  • Emergency stop button with 1 NC contact, automatic or uncontrolled start
  • Emergency stop control 1-channel wiring
• Safety level:
  • Can reach PL e/category 4 conforming to EN/ISO 13849-1
  • Can reach SILCL 3 conforming to EN/IEC 62061
• Reliability data safety:
  • DC > 99% conforming to EN/ISO 13849-1
  • MTTFd = 75.8 years conforming to EN/ISO 13849-1
  • PFHd = 7.95E-9 1/h conforming to EN/IEC 62061
• Connections - terminals:
  • Fixed screw clamp terminals for various cable types and sizes
• Output type:
  • Relay opens immediately, 3 NO circuit(s), voltage-free
  • Relay opening delay, 3 NO circuit(s), voltage-free
• Voltage control circuit:
  • 24VDC
• Mounting support:
  • 35mm symmetrical DIN rail
• Environment standards:
  • EN/ISO 13850
  • EN 1088/ISO 14119
  • EN/IEC 60947-5-1
  • EN/IEC 60204-1
• Product certifications:
  • UL
  • TÜV
  • CSA
• IP degree of protection:
  • IP20 (terminals) conforming to EN/IEC 60529
  • IP40 (housing) conforming to EN/IEC 60529
• Ambient air temperature:
  • For operation: -10…55 °C
  • For storage: -25…85 °C

XPSAV11113 084231 Schneider Electric is a reliable and high-quality item suitable for a wide range of industrial applications. This product can be purchased at PLC2Day, a leading supplier of industrial automation products.
