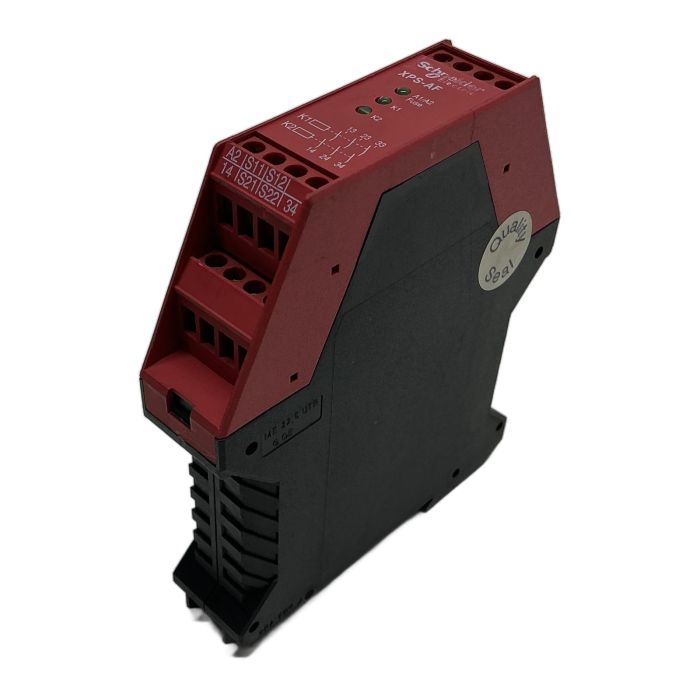

Schneider Electric Preventa Safety Relay XPSAF5130

Description

The Schneider Electric XPSAF5130 is a compact safety relay from the Preventa series, designed for monitoring emergency stop circuits and protective switches. It provides a reliable solution for ensuring machine safety in accordance with international standards. This module operates on a flexible 24V AC/DC supply and is suitable for a wide range of industrial applications.

Specifications

• Manufacturer: Schneider Electric
• Model: XPSAF5130
• Product Line: Preventa
• Supply Voltage: 24V AC/DC (-15% / +10%)
• Safety Outputs: 3 Normally Open (N/O)
• Auxiliary Outputs: 1 Normally Closed (N/C)
• Safety Level Compliance: Cat. 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061)
• Terminal Type: Screw terminals
• Ambient Air Temperature for Operation: -25 to 55 deg C

Label Info

• Ref.: XPSAF5130
• AC-15: Ue = 240V AC / Ie = 0.75A
• DC-13: Ue = 24V DC / Ie = 1.5A
• Standard: EN/IEC 60947-5-1

Application

This safety relay is ideal for applications requiring the monitoring of single or dual-channel emergency stop circuits, as well as safety switches on machine guards and gates. It is commonly used in packaging, material handling, and manufacturing industries to protect personnel and equipment.

Country of Origin

Made in Indonesia.

CO2 Impact

By choosing this pre-owned unit, you are contributing to a circular economy and avoiding approximately 6.0 kg of CO2 emissions associated with the production of a new one. This is comparable to the emissions from a 30-kilometer car journey.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the XPSAF5130 is specifically designed for monitoring emergency stop circuits and protective switches. For two-hand control, you should use a dedicated module from the Preventa series, such as the XPSBC or XPSBCE.

The XPSAF5130 can reach up to Category 4, Performance Level e (PL e) according to EN/ISO 13849-1 and SILCL 3 according to EN/IEC 62061, provided it is correctly integrated into the safety circuit.

While the XPSUAF13AP is the functional replacement, it is not a direct drop-in replacement. It has a different form factor (22.5 mm width) and terminal layout. Wiring modifications and a re-evaluation of the safety circuit will be necessary when migrating.
