Schneider Electric Preventa XPS-ECP Safety Module

Description

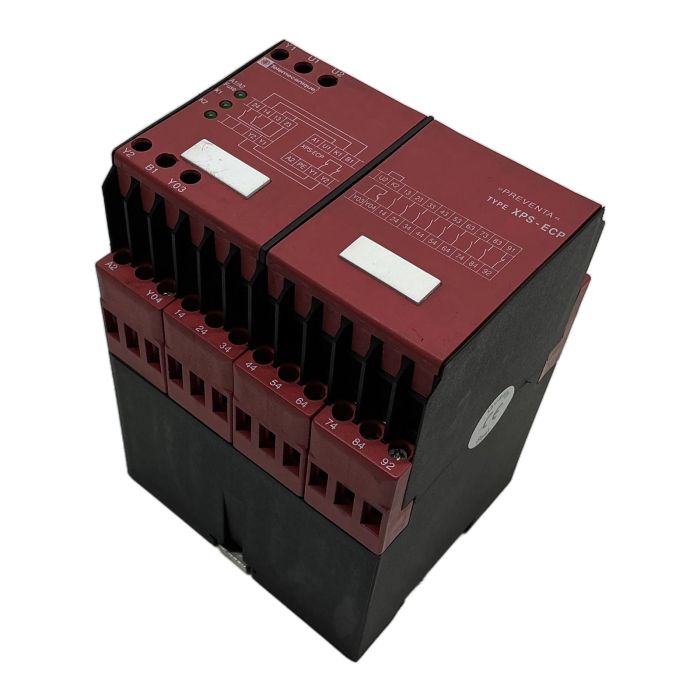

The Schneider Electric XPSECP5131 is a robust and reliable safety module from the Preventa family. Designed for monitoring safety-critical applications, this configurable module is ideal for implementing functions such as two-hand control monitoring and light curtain supervision. It operates on a versatile 24V AC/DC power supply, making it suitable for a wide range of industrial control panels.

Specifications

• Manufacturer: Schneider Electric
• Brand: Telemecanique
• Series: Preventa
• Type: XPS-ECP
• Part Number: XPSECP5131
• Power Supply: 24V AC (+10%/-20%), 24V DC (+/-20%)
• Application: Two-hand control and light curtain monitoring
• Safety Level: Up to Cat. 4 EN 954-1 / PL e ISO 13849-1

Label Info

• Ref.: XPSECP5131
• AC15 B300 / DC13 24V/1.5A (Contacts 13/14..83/84)
• AC15 C300 / DC13 24V/1.2A (Contact 91/92)
• Standard: IEC 60947-5-1

Application

This module is specifically designed for machine safety circuits where operator protection is paramount. It is commonly used in manufacturing, packaging, and material handling systems to ensure compliance with international safety standards.

Country of Origin

This product is made in Indonesia.

CO2 Impact

By choosing this pre-owned safety module, you are avoiding the production of a new one, saving an estimated 20.0 kg of CO2. This is equivalent to the emissions of driving an average car for 100 kilometers.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LEDs provide real-time status information. Typically, a green 'POWER' or 'A1/A2' LED indicates the unit is powered. 'K1' and 'K2' LEDs indicate the status of the internal safety relays (On=Closed, Off=Open). Flashing or red LEDs can indicate a fault condition, such as a channel discrepancy or an internal error. Refer to the product's technical manual for a detailed list of diagnostic codes.

Yes, when correctly integrated into a safety circuit with appropriate dual-channel inputs (e.g., from an E-stop button or light curtain) and proper wiring practices, the XPSECP5131 is designed to meet the requirements for Safety Category 4 and Performance Level 'e' (PLe) as defined by EN ISO 13849-1.

These are utilization categories that define the current-making and breaking capacity of the relay contacts for specific types of loads. AC-15 is for controlling AC electromagnetic loads (like contactor coils), while DC-13 is for controlling DC electromagnets. The different current ratings (1.5A vs 1.2A) reflect the contact's ability to handle these different electrical load types safely.
