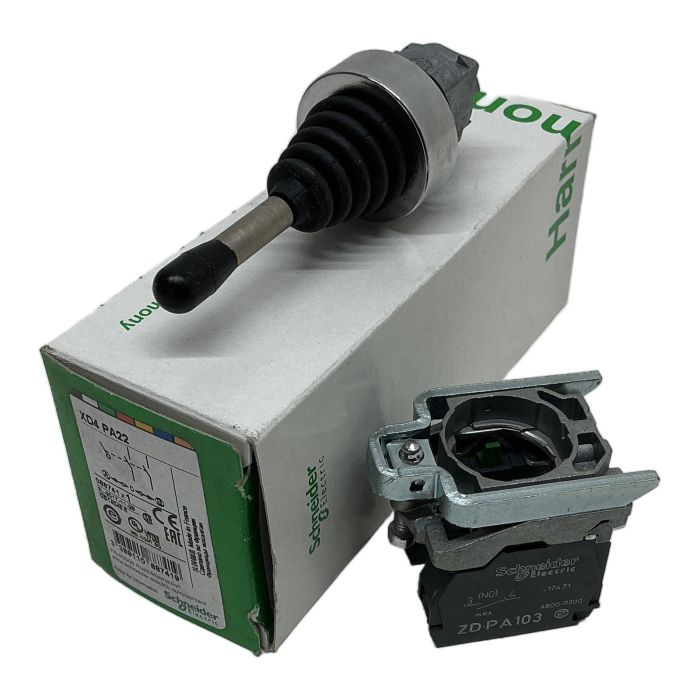

Schneider Electric XD4 PA22 Joystick Controller

Description

The XD4 PA22 is a high-quality joystick controller from Schneider Electric's Harmony XB4 range of metal control and signaling units. It is designed for industrial applications requiring intuitive, two-directional control. This unit features a spring-return mechanism that brings the joystick back to the central position upon release, ensuring operational safety. The robust chromium-plated metal construction provides durability and a long mechanical life in demanding environments.

Specifications

• Manufacturer: Schneider Electric
• Part Number: XD4 PA22
• Product Range: Harmony XB4
• Product Type: Joystick Controller
• Mounting Diameter: 22 mm
• Operator Type: Spring return, 2-directional
• Positions: 3 positions (+/- 45 deg)
• Contact Block: 1 NO per direction (included)
• Bezel Material: Chromium-plated metal
• IP Rating: IP66 conforming to IEC 60529

Label Info

• Model: XD4 PA22
• EAN: 3389110887419
• Production Date: 2017-11-29

Application

Ideal for controlling cranes, hoists, industrial machinery, and material handling equipment where precise, momentary, two-axis control is needed.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you help avoid the emission of approximately 4.8 kg of CO2. This is equivalent to the savings from driving a car for 24 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the IP rating of the XD4 PA22 controller?

The Schneider Electric XD4 PA22 has an IP66 rating, ensuring protection against dust ingress and high-pressure water jets, making it suitable for harsh industrial environments.

Yes, the Harmony XB4 series is modular. You can add, remove, or replace contact blocks on the back of the controller to customize the switching logic (e.g., using NC contacts or adding more NO contacts).

This specific model, XD4 PA22, is a momentary or 'spring return' type. The lever automatically returns to the central (0) position when released.
