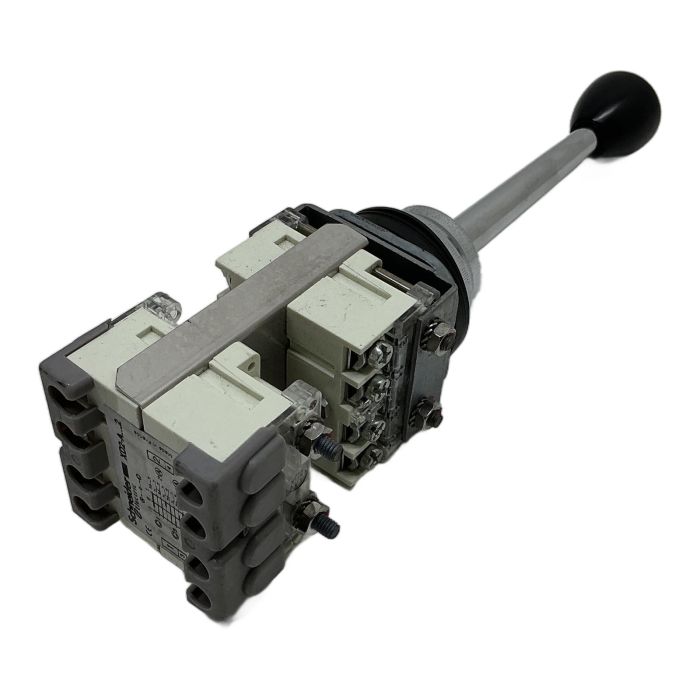

Schneider Electric XD2PA22 Joystick Controller

Description

The Schneider Electric XD2PA22 is a robust joystick controller from the Harmony XD2 series, designed for intuitive and reliable control in industrial environments. This unit provides 2-directional control with a spring-return mechanism that automatically brings the lever back to the central, neutral position. It is ideal for applications such as controlling cranes, hoists, and other machinery requiring precise momentary operation. The durable metal construction ensures a long service life even in demanding conditions.

Specifications

• Manufacturer: Schneider Electric
• Part Number: XD2PA22
• Series: Harmony XD2
• Product Type: Joystick Controller
• Number of Directions: 2
• Actuator Type: Spring return to 0 position
• Operator Profile: Long operating shaft
• Panel Cutout Diameter: 22 mm
• Contacts: 1 Normally Open (NO) per direction
• Rated Voltage: Up to 500V

Label Info

• Brand: Schneider Electric
• Model: XD2-A...2 (Base)
• Date Code: 3N-2012-W29

Application

This joystick is commonly used in material handling, industrial automation, and construction equipment for controlling motion in two axes. Its ergonomic design and tactile feedback make it suitable for precise operator control panels.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned unit instead of a new one prevents the emission of approximately 8.88 kg of CO2, a significant contribution to sustainable industrial practices.

Availability

This item is a reliable, tested component, ready for immediate dispatch. As an obsolete part, it can be critical for maintaining legacy systems without requiring a complete panel redesign. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Harmony XD2 series, including the XD2PA22, typically features an IP65 rating when properly installed in a panel. This means it is dust-tight and protected against water jets from any direction, making it suitable for most industrial environments.

Yes, the Harmony XD2 series is modular. The contact blocks can be removed, replaced, or additional blocks can be stacked to customize the electrical function. You can use standard ZB2 series contact blocks to change from NO to NC (Normally Closed) or to add more contacts per direction.

Absolutely. The dry contacts are ideal for signaling low-voltage PLC digital inputs (e.g., 24V DC). The contacts are also rated for higher AC voltages, typically up to 380V at 1A (AC-11 rating), making them versatile for direct control of small contactors or relays.
