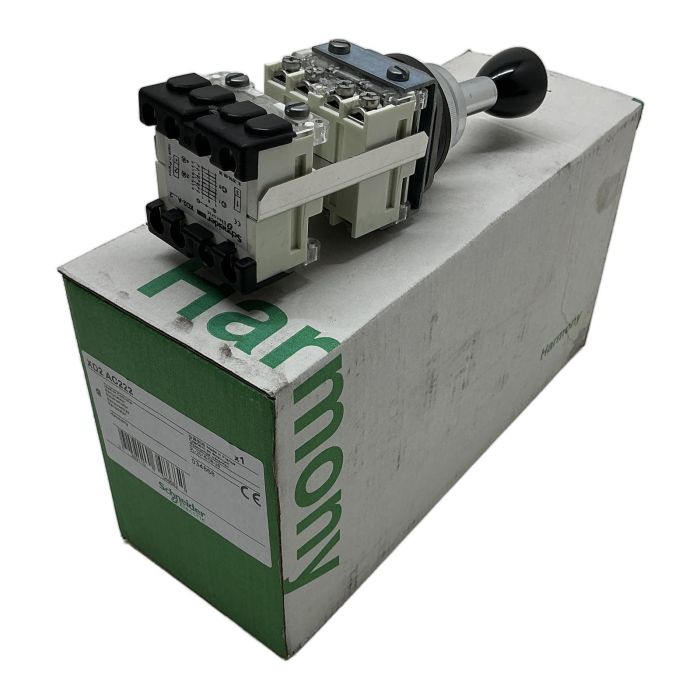

Schneider Electric Harmony XD2 Joystick Controller

Description

The XD2 AC222 is a high-quality joystick controller from Schneider Electric's Harmony series, designed for intuitive and reliable control of industrial machinery. This unit provides 2-directional control with a stay-put mechanism, meaning the selected position is maintained until manually reset. It is built for a standard 22mm panel cutout and comes equipped with one normally open (NO) contact for each direction of operation.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Harmony XD2
• Model: XD2 AC222
• Component Type: Joystick Controller
• Number of Directions: 2
• Operator Type: Stay Put (Latching)
• Contacts: 1 NO per direction
• Mounting Diameter: 22 mm
• Operating Shaft Length: 54 mm

Label Info

• Model: XD2 AC222
• Date Code: 3L-2016-08-26
• EAN: 3389110348682

Application

This joystick is ideal for control panels on cranes, hoists, material handling equipment, and other industrial machinery requiring simple, maintained directional control.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component avoids the emission of 5.88 kg of CO2, which is comparable to the savings from not driving a car for almost 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

"Stay put" or "latching" means that when you move the joystick to a position, it will remain in that position and keep the electrical contact closed without you needing to hold it. It must be manually moved back to the center to disengage the contact.

Yes, the Harmony XD2 series is modular. You can typically add or change contact blocks to suit your specific application needs, such as adding a normally closed (NC) contact or additional NO contacts, provided you adhere to the maximum number of blocks specified by the manufacturer.

When mounted correctly on a control panel, the Schneider Electric Harmony XD2 series joysticks typically achieve an IP66 rating, providing excellent protection against dust and powerful water jets.
