Schneider Electric OsiSwitch Limit Switch Body

Description

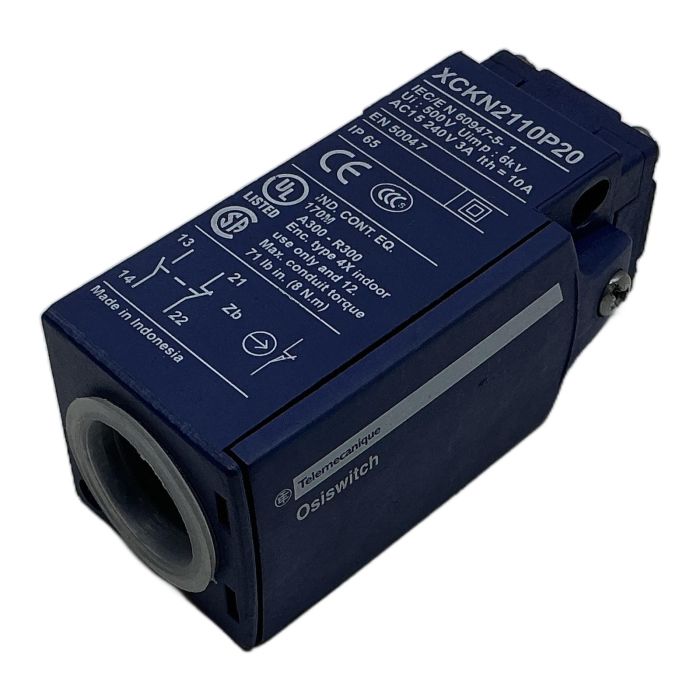

The XCKN2110P20 is a robust and reliable limit switch body from Schneider Electric's OsiSense XC range. This component serves as the core of a complete limit switch assembly, designed for detecting the presence or position of objects in industrial machinery and automated systems. Its plastic housing provides excellent durability and resistance in various environments. This body must be combined with a compatible actuator head to form a complete switch.

Specifications

• Manufacturer: Schneider Electric
• Part Number: XCKN2110P20
• Series: OsiSense XC
• Body Material: Plastic
• Contact Configuration: 1 NO + 1 NC
• Contact Operation: Snap action (Zb)
• Cable Entry: 1 entry tapped for M20 x 1.5 cable gland
• Protection Rating: IP65

Label Info

• Standard: IEC/EN 60947-5-1
• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Operational Current (AC-15): 3A at 240V
• Conventional Thermal Current (Ith): 10A

Application

This limit switch body is ideal for use in packaging, material handling, conveying, and machine tool applications where reliable position sensing is critical for process control and safety.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this pre-owned component, you are avoiding the emission of approximately 2.8 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What actuator heads are compatible with the XCKN2110P20 body?

This body is part of the OsiSense XC standard format (EN 50047) and is compatible with various Schneider Electric heads, including plunger types (ZCE01, ZCE02), roller levers (ZCE06, ZCE10), and more. Always consult the OsiSense XC catalog to ensure compatibility.

The 'Zb' designation refers to the contact block type, which in this case is a snap-action contact with 1 Normally Open (NO) and 1 Normally Closed (NC) circuit. This configuration provides a positive opening operation of the NC contact, a key feature for safety-related functions.

While standard limit switches are used in control circuits, for dedicated safety functions (e.g., emergency stops, guard interlocking), it is crucial to use components specifically rated for safety standards like ISO 13849-1. This switch has a positive opening NC contact, which is a prerequisite for safety circuits, but you should always verify the required Performance Level (PL) for your specific application.
