• Description: Analog Touchscreen Panel 65536 Colors - 800x600 Pixels SVGA - 12.1 Inch, XBTGT6330, 3595863885255
• Magelis XBT - Profibus DP module for XBTGK, XBTGT terminal, XBTZGPDP, 3595863906813

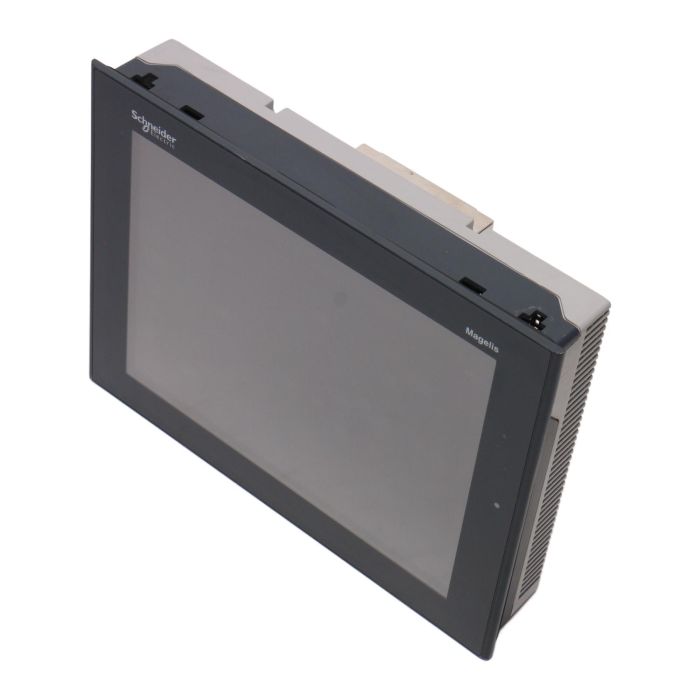

• Product Info: Harmony XBTGT6330
  • Product or component type: Advanced touch screen panel
  • Type display: Color TFT LCD with backlight
  • Color display: 65536 colors
  • Display resolution: 800 x 600 pixels SVGA
  • Display size: 12.1 inch
  • Type software: Configuration software
  • Software allocation: Video Designer
  • Operating system: Harmony
  • Processor name: CPU RISC
  • Frequency processor: 266 MHz
  • Memory description: 512 KB SRAM data backup with lithium battery backup, 32 MB flash EPROM application memory
  • Integrated connection type: RJ45 connector COM2 serial connection with RS485 at <= 187.5 kbit/s, male SUB-D 9 connector COM1 serial connection with RS232C/RS422/RS485 at <= 115.2 kbit/s
  • Removable screw terminal block connector power supply, RJ45 connector Ethernet TCP/IP
  • 3 removable screw terminal block connector digital output, audio output, digital input
  • 2 USB port type A master (V1.1)
  • Resistance to electrostatic discharge: 6 kV conforming to IEC 61000-4-2 level 3
• Label Info: Magelis Advanced Panel Schneider
  • RATING: Class2 24V DC 1.30A
  • Electric FID:1102 Max. Surrounding Air Temp. 50°C
  • XBTGT6330, 12.1' Color Touch Panel TFT, CE, IEC C, 61131-2
  • SN: 124662C010019/124662C008109, PV:02 RL:10 SV:2.1, DOM: 1336, Made in China
  • UL, P, N998 LISTED 35DN ME77, IND. CONT EQ ALSO LISTED
  • IND CONT EQ FOR HAZ LOC, a. 1 Div. 2. Grp. A.B.CO
  • Use Class2 power source only, T4A
  • CFカードはランプが消えてから外してください。
  • Be sure the lamp(green) has turned off, before removing CF card.
  • Schneider Electric F-06903 Sophia Antipolis, Ex 13 D, Ex tD A22 IP64 T135°C T Amb: 0°C to 50°C
  • INERIS 06ATEX3024X, WARNING-<>
• Product Info: Harmony XBTZGPDP
  • Category accessories: Communication accessories
  • Type accessories: Card
  • Description accessories: Expansion card on bus
  • Destination accessories: Terminal
  • Type of bus: Profibus DP
• Label Info: 2, Magelis Accessories, XBTZGPDP, ProfiBUS DP Slave, Unit for Advanced Panels
  • SN: 10374393009/10374393001., PV:01 RL:00 SV:-, DOM: 1325, Made in Japan
  • Schneider RATING: Class2 5V DC 0.17A
  • Electric FID: 0000 Ambient of 50°C MAX, DCE, C, UL, US, LISTED, N998, 3R23, IND. CONT. EQ. FOR HAZ. LOC, CLI DIV 2 Groups A.B.C.D T6
  • Use Class 2 Power source only

XBTGT6330 + XBTZGPDP by Schneider Electric

Explore the XBTGT6330 + XBTZGPDP by Schneider Electric, ideal for automation, packaging, conveyors, HVAC, and more industrial applications. Available for purchase at PLC2Day.
