• Description:

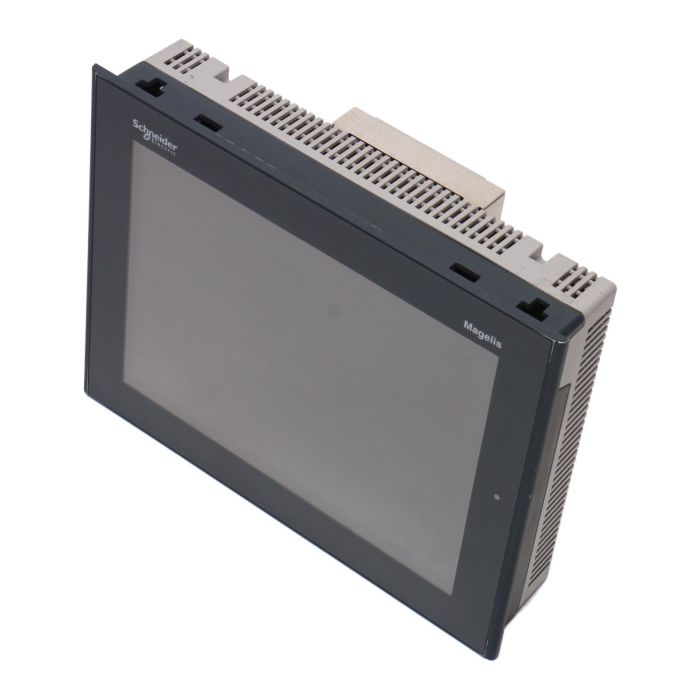

  • XBTGT5330: Analogue touchscreen panel 65536 colours - 640x480 pixels VGA - 10.4inch - 24V DC
  • XBTZGPDP: Magelis XBT - Profibus DP module for XBTGK, XBTGT terminal, 3595863885743 + 3595863906813
• Product Info:
  • Harmony XBTGT5330:
    • Product or component type: Advanced touch screen panel
    • Type display: Color TFT LCD with backlight
    • Color display: 65536 colors
    • Display resolution: 640 x 480 pixels VGA
    • Display size: 10.4 inch
    • Type software: Configuration software
    • Software allocation: Video Designer
    • Operating system: Harmony
    • Processor name: CPU RISC
    • Frequency processor: 266 MHz
    • Memory description: 512 KB SRAM data backup with lithium battery backup, 32 MB flash EPROM application memory
    • Integrated connection type: RJ45 connector COM2 serial connection with RS485 at <= 187.5 kbit/s, compatible with Siemens MPI (187.5 kbit/s), male SUB-D 9 connector COM1 serial connection with RS232C/RS422/RS485 at <= 115.2 kbit/s, removable screw terminal block connector power supply, RJ45 connector Ethernet TCP/IP, 3 removable screw terminal block connector digital output, removable screw terminal block connector audio output, removable screw terminal block connector digital input, 2USB port type A master (V1.1)
    • Resistance to electrostatic discharge: 6 kV conforming to IEC 61000-4-2 level 3
  • Harmony XBTZGPDP:
    • Category accessories: Communication accessories
    • Type accessories: Card
    • Description accessories: Expansion card on bus
    • Destination accessories: Terminal
    • Type of bus: Profibus DP
• Label Info:
  • Magelis Advanced Panel Schneider, Schneider Electric, XBTGT5330, 10.4 Color Touch Panel TFT, CE, ☑, SN: 1309868002716, PV:04 RL:11 SV.2.1, DOM: 1402, Made in China, RATING Class2 24V DC 1.22A, FID: 1102 Max. Surrounding Air Temp. 50°C, IEC, 61131-2, C, UL, N998 LISTED 35DN ME77, IND CONT EQ ALSO LISTED, IND CONT EQ FOR HAZ LOC, Cl. 1. Div. 2 Grp. A.B.C.D, T4A, Use Class2 power source only
  • Magelis Accessories, XBTZGPDP, ProfiBUS DP Slave, Unit for Advanced Panels, SN: 10399037005, PV:01 RL:00 SV:-, DOM: 1350, Made in Japan, Schneider, Schneider RATING: Class2 5V DC 0.17A, Electric FID:0000 Ambient of 50°C MAX, CE, N998, C UL US, USTED, 3R23, IND. CONT. EQ. FOR HAZ LOC, CLI DIV 2 Groups A.B.C.D T6, Use Class2 Power source only

XBTGT5330 + XBTZGPDP Schneider Electric
