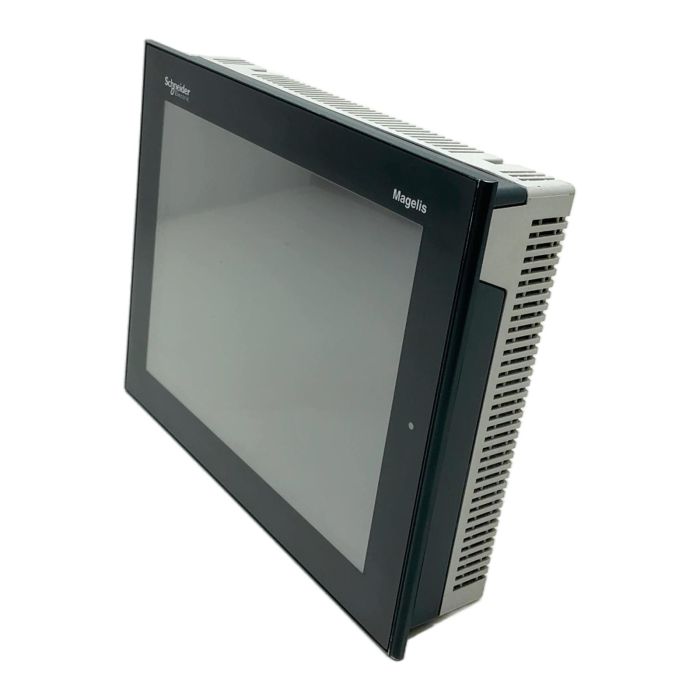

Schneider Electric Magelis XBTGT5330 HMI

Description

The XBTGT5330 is an advanced HMI touch panel from Schneider Electric's Magelis series. Featuring a 10.4-inch color TFT display with a 640x480 VGA resolution, it offers a high-clarity interface for demanding industrial applications. This unit is designed for robust and reliable operation, providing operators with comprehensive control and monitoring capabilities.

Specifications

• Manufacturer: Schneider Electric
• Series: Magelis XBTGT
• Model: XBTGT5330
• Display Size: 10.4 inch
• Display Type: Color TFT LCD
• Resolution: 640 x 480 pixels (VGA)
• Power Supply: 24V DC
• Communication: Ethernet TCP/IP, Serial (RS232/RS485), USB
• Backlight Part Number: XBTZG45B

Label Info

• Type: XBTGT5330
• SN: N. 085960E028291
• Rating: 24V DC, 1.22A
• DOM: 1309 (Year 2013, Week 9)

Application

Ideal for use in a wide range of industries including manufacturing, packaging, and process control where a reliable and clear operator interface is essential for machine diagnostics and control.

Country of Origin

Made in China.

CO2 Impact

Choosing this used component saves approximately 100.0 kg of CO2 compared to a new production. This is equivalent to the carbon absorption of 5 trees for one year.

Availability

This is an obsolete item, but it is in stock and available for immediate dispatch. Essential for repairs and maintenance of existing systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Schneider Electric XBTGT5330 is programmed using the Vijeo Designer software suite. Ensure you have a compatible version for this specific model.

Yes, the backlight is a field-replaceable unit. The specific part number for the replacement backlight is XBTZG45B, as indicated on the device label.

This HMI supports a wide range of protocols. The Ethernet port typically handles Modbus TCP/IP, while the serial ports can be configured for protocols like Modbus RTU, Uni-Telway, and various third-party drivers available in Vijeo Designer.
