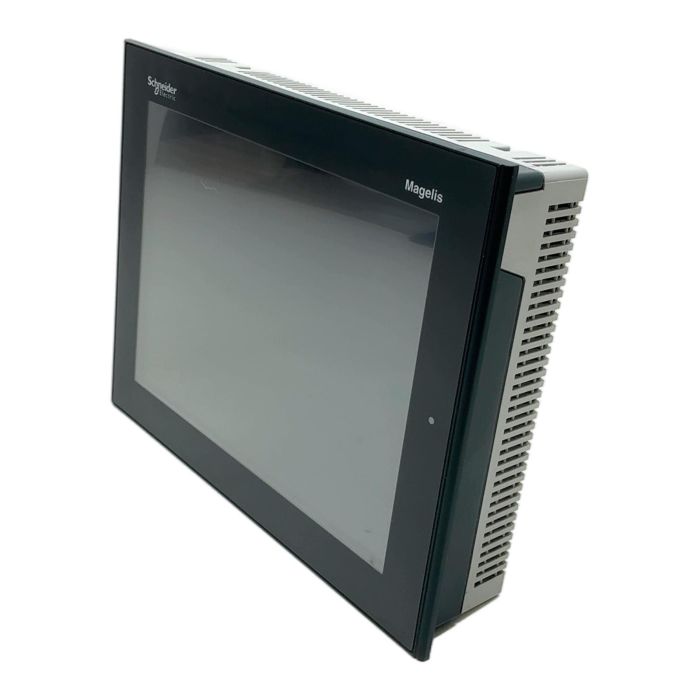

Schneider Electric Magelis XBTGT5330 HMI Touch Panel

Description

The XBTGT5330 is a robust HMI from the Schneider Electric Magelis series, designed for advanced machine control and visualization. It features a bright 10.4-inch color TFT display and versatile communication options, making it a reliable choice for complex industrial applications.

Specifications

• Manufacturer: Schneider Electric
• Part Number: XBTGT5330
• Product Type: HMI Touch Panel
• Series: Magelis XBTGT
• Display Size: 10.4 inches
• Display Resolution: 640 x 480 pixels (VGA)
• Power Supply: 24V DC
• Communication Ports: Ethernet, RS485 (COM1/COM2), USB

Label Info

• Model: XBTGT5330
• Rating: Class2 24V DC
• Certification: CE, cULus, INERIS 06ATEX3024X
• DOM: 1349 (Week 49, 2013)

Application

Ideal for manufacturing lines, process control, and automation systems requiring a reliable graphical interface, especially in environments that may have explosive atmospheres.

Country of Origin

Made in China.

CO2 Impact

Choosing this pre-owned unit saves approximately 100.0 kg of CO2, equivalent to the emissions of a 500 km car journey, promoting sustainable industrial practices.

Availability

This is an obsolete item, perfect for spares and repairs to extend the life of your existing equipment. Limited stock available. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What software is used to program the Magelis XBTGT5330?
Answer
The XBTGT5330 is programmed using Schneider Electric's Vijeo Designer software. Ensure you have a version that supports this legacy hardware, typically Vijeo Designer V6.2 or earlier.

Question?
Can this HMI directly replace an older Magelis model like an XBTG?
Answer
While the XBTGT5330 is a more advanced panel, it may not be a direct drop-in replacement for older series without application conversion. The Vijeo Designer software includes tools to help migrate projects, but panel cut-out dimensions, communication settings, and script compatibility should be carefully checked.

Question?
What is the purpose of the INERIS 06ATEX3024X certification?
Answer
This certification indicates that the HMI is approved for use in potentially explosive atmospheres (ATEX zones). It is crucial for applications in industries like chemical processing, oil and gas, or any environment where flammable gases or dust may be present. Always follow the specific installation requirements for hazardous locations.
