Schneider Electric Magelis 10.4 Inch Color HMI

Description

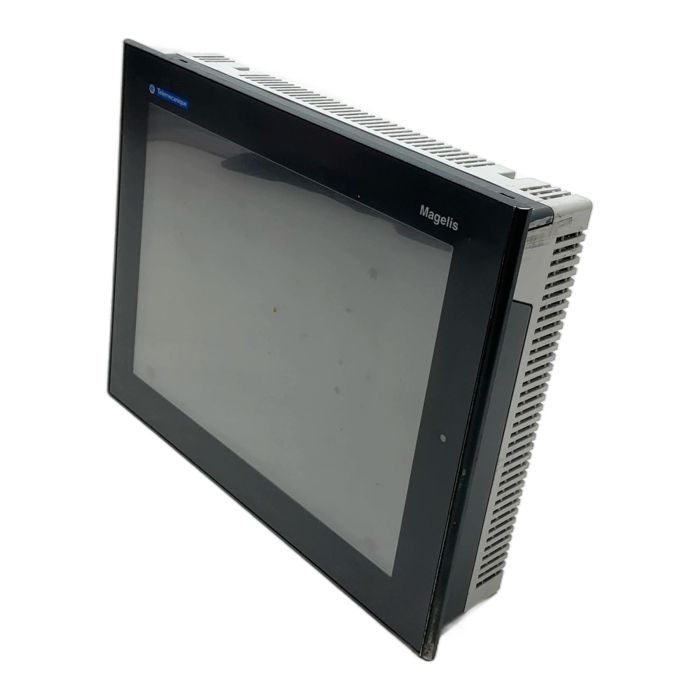

The Schneider Electric XBTGT5330 is an advanced HMI touch panel from the Magelis XBTGT series. It features a vibrant 10.4-inch color TFT display with a resolution of 640x480 pixels (VGA), providing a clear and user-friendly interface for monitoring and controlling industrial processes. This robust unit is powered by a 24V DC source and offers extensive connectivity, including Ethernet, USB, and serial ports (RS485/COM2), making it suitable for a wide range of automation applications.

Specifications

• Manufacturer: Schneider Electric
• Series: Magelis XBTGT
• Model: XBTGT5330
• Product Type: HMI Graphic Touch Terminal
• Display Size: 10.4 inches
• Display Type: Color TFT LCD
• Resolution: 640 x 480 pixels (VGA)
• Input Voltage: 24V DC
• Communication Ports: Ethernet, USB, RS485, COM2 (DB9 Serial)
• Memory: CompactFlash card slot for data storage and transfer
• Protection Rating: Type 4X, 13 (Indoor use)

Label Info

• Model: XBTGT5330
• SN: 34525150498
• PV: 01
• RL: 00
• SV: 1.0
• DOM: 0613 (Week 13, 2006)

Application

Ideal for complex machine control, process visualization, and data logging in industries such as manufacturing, packaging, and material handling. Its robust design and versatile communication options allow seamless integration into existing PLC systems.

Country of Origin

Made in Japan.

CO2 Impact

Opting for this pre-owned HMI panel instead of a new one prevents the emission of approximately 120 kg of CO2, a significant contribution to sustainable industrial practices.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What software is used to program the XBTGT5330 panel?

The XBTGT5330 is configured and programmed using Schneider Electric's Vijeo Designer software. Ensure you have a compatible version for this legacy hardware.

Can this HMI communicate with non-Schneider PLCs?

Yes, it supports a wide range of communication drivers, including Modbus TCP/IP and Modbus serial, allowing it to connect with PLCs from many different manufacturers.

Is the backlight on the XBTGT5330 replaceable?

Yes, the backlight for the XBTGT5330 is a field-replaceable unit. This allows for extended service life of the display without needing to replace the entire HMI.
