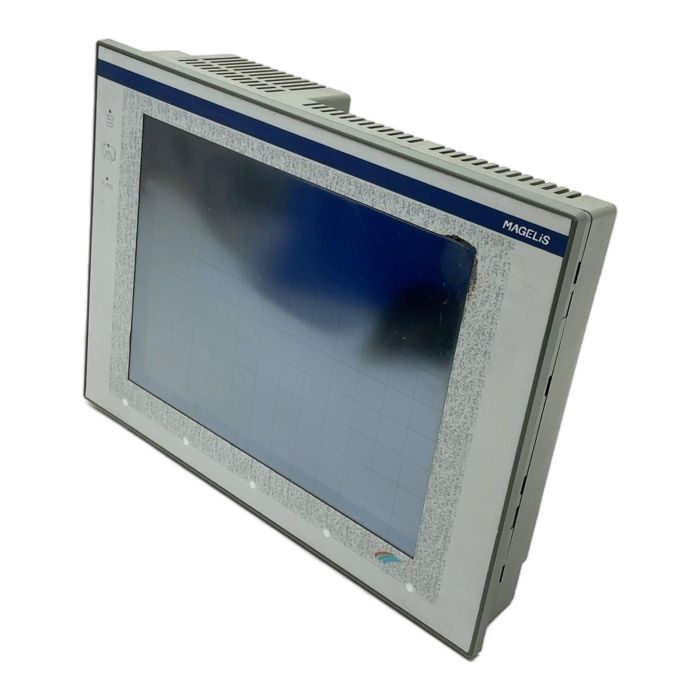

Schneider Electric Magelis HMI XBT F034510

Description

The Schneider Electric XBT F034510 is a robust HMI (Human Machine Interface) from the Magelis series. It features a 10.4-inch color STN touchscreen, providing a clear and interactive graphical interface for operators. This panel is designed for complex industrial applications, allowing for intuitive monitoring and control of machinery and processes. This unit comes with a complimentary XBT MEM 08 memory card and a communication cable.

Specifications

• Manufacturer: Schneider Electric
• Series: Magelis XBTF
• Model: XBT F034510
• Product Type: HMI Touch Panel
• Display Size: 10.4 inches
• Display Type: Color STN LCD
• Resolution: 640 x 480 pixels (VGA)
• Input Voltage: 24V DC
• Power Consumption: 22W
• Protection Rating: IP65 / NEMA 4 on front panel

Label Info

• Brand: Modicon / Telemecanique
• Model: XBT F034510
• Power: 24V DC, 22W
• Certifications: UL, cUL Listed 170M

Application

This HMI panel is ideal for use in various industries including manufacturing, packaging, and process control, particularly for legacy systems that rely on the Magelis platform.

Country of Origin

Manufactured in France.

CO2 Impact

Opting for this pre-owned HMI panel saves an estimated 140.0 kg of CO2 compared to producing a new one. This choice supports sustainable practices by extending the lifecycle of reliable industrial equipment.

Availability

This product is an obsolete item but is available from our stock. As it is no longer in production, availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

What software is used to program the Magelis XBT F034510?

This HMI is programmed using Schneider Electric's Vijeo Designer Lite or XBT-L1000 software, depending on the firmware version. Ensure you have the correct software and communication cable for programming.

While the XBT F034510 is a color panel, it has the same physical cutout dimensions as many monochrome panels in the same family. However, the application program will need to be recompiled or adjusted for the color display and potentially different communication settings.

The XBT MEM 08 is an 8MB PCMCIA memory card used for storing and transferring the HMI application project. It can also be used for data logging or recipe management.
