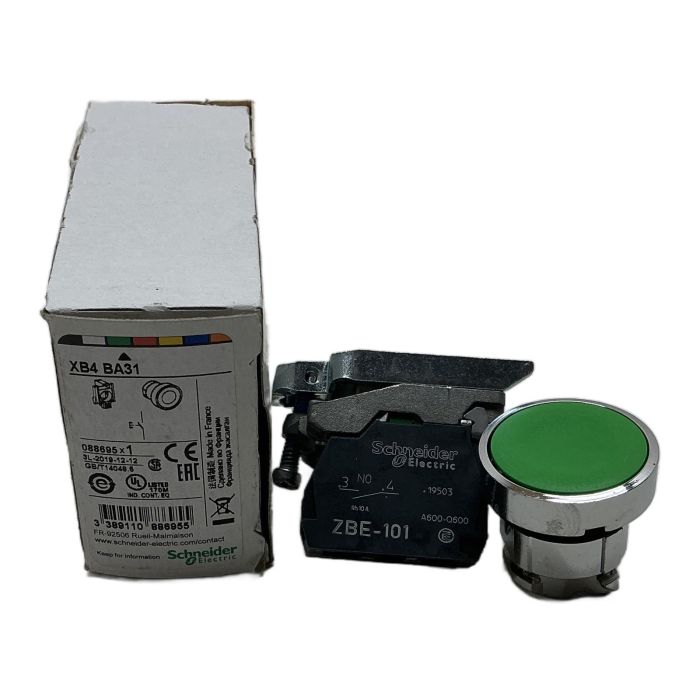

Schneider Electric XB4 BA31 Green Flush Pushbutton

Description

The Schneider Electric XB4 BA31 is a complete pushbutton unit from the robust Harmony XB4 range. This model features a green flush, spring-return actuator, a chromium-plated metal bezel, and a 22mm mounting diameter. It is supplied with a single normally open (1NO) contact block with screw clamp terminals, making it a ready-to-install solution for industrial control panels.

Specifications

• Manufacturer: Schneider Electric
• Series: Harmony XB4
• Model: XB4 BA31
• Actuator Type: Flush, Spring Return (Momentary)
• Actuator Color: Green
• Mounting Diameter: 22mm
• Contacts: 1 Normally Open (1NO)
• Contact Block Model: ZBE-101
• Terminals: Screw Clamp
• Bezel Material: Chromium-plated Metal

Label Info

• Model: XB4 BA31
• EAN: 3389110886955
• Standards: CE, EAC, UL, GB/T14048.5

Application

Ideal for use in industrial control systems, machinery, and automation panels for functions such as start, stop, jog, or reset operations. The modular design allows for flexibility and easy integration.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 3.0 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The front face (actuator and bezel) is rated IP66, IP67, IP69, and IP69K, providing excellent protection against dust ingress and high-pressure water jets. The terminals at the rear are rated IP20.

Yes, the Harmony XB4 series is modular. You can stack additional ZBE series contact blocks (e.g., ZBE-102 for a normally closed contact) onto the body and fixing collar to expand its functionality.

The screw clamp terminals on the ZBE-101 block accept cable cross-sections from 0.22 to 2.5 mm squared, with or without cable ends. The recommended tightening torque is between 0.8 and 1.2 Nm.
