Schneider Electric Modbus Communication Cable

Description

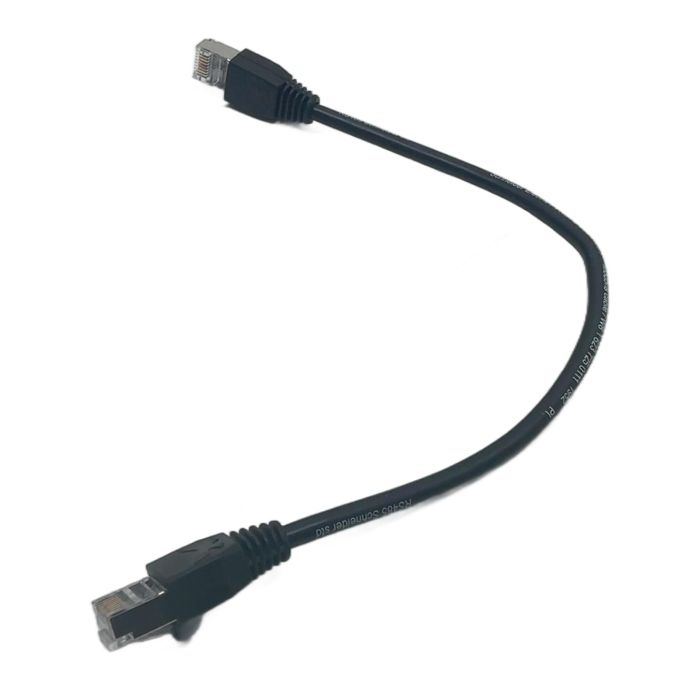

This is the VW3A8306R03, an original connecting cable from Schneider Electric. It is a 0.3-meter Modbus serial link cable terminated with male RJ45 connectors on both ends. It's designed to provide a secure and reliable data connection between automation components like Human-Machine Interfaces (HMIs) and variable frequency drives (VFDs) or PLCs.

Specifications

• Manufacturer: Schneider Electric
• Part Number: VW3A8306R03
• Product Type: Modbus Serial Link Cable
• Length: 0.3 meters
• Connectors: 2x RJ45 Male
• Communication Standard: RS485
• Compatibility: Altivar drives, Lexium servo drives, Modicon PLCs, and Magelis HMIs.

Label Info

• Schneider Electric / VW3 A8 306 R03 /
• Modbus cable / W8 1 623 725 0111 1952 PI
• RS485 Schneider std

Application

Ideal for short-distance connections within a control cabinet, for example, linking an Altivar drive to a Magelis HMI for configuration, control, and monitoring purposes.

Country of Origin

This product is typically manufactured in China.

CO2 Impact

Choosing this pre-owned cable over a new one prevents the emission of approximately 1.2 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This cable follows the standard Schneider Electric Modbus pinout for RJ45 connectors. It is a straight-through cable designed specifically for their equipment. Always refer to the manuals of the connected devices to confirm compatibility.

While they use the same RJ45 connector, it is not recommended. Standard ethernet cables may have different pinouts (e.g., crossover) or lack the required shielding and impedance characteristics for robust RS485/Modbus communication, which can lead to data errors and connection issues.

No, this cable is specifically designed for Modbus serial link (RS485). Modbus TCP/IP runs over an Ethernet network and requires standard Category 5e or better Ethernet cables.
