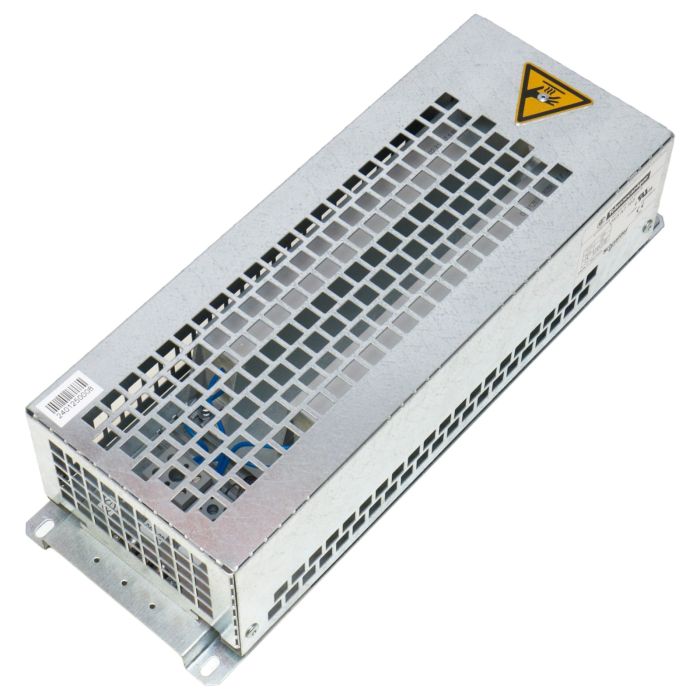

• Altivar 320
• Braking resistor
• IP20
• 28 Ohm
• 200W: cooling, air inlets and outlets must not be obstructed in any way.

Specifications:

• Main
• Range of product: Altivar
• Range compatibility: Altivar 61, Altivar 312, Altivar 32, Altivar 312 Solar, Altivar 31C
• Product compatibility: ATV312HD11N4, ATV312HD11S6, ATV312HD15N4, ATV312HD15S6, ATV312HU40M3, ATV31CD11N4, ATV31CD15N4, ATV32HD11N4, ATV32HD15N4, ATV61HD18Y, ATV61HD22Y, ATV61HU30M3, ATV61HU40M3, ATV61WD15N4, ATV61WD15N4C, ATV61WD18N4, ATV61WD18N4C, ATV71HD11N4, ATV71HD15N4, ATV71HD15Y, ATV71HD18Y, ATV71HU30M3, ATV71HU40M3, ATV71PD11N4Z, ATV71WD11N4, ATV71WD15N4
• Variable speed drive ATV310 at 11 kW
• Ohmic value: 28 Ohm
• [Ue] rated operational voltage: 24 V DC at 0.1 A, 250 V AC at 1 A

Complementary:

• Average power available: 200 W at 50 °C, 231 W at 40 °C
• Electrical connection: Terminal, connection capacity: <= 1.5 mm² / AWG 16 for temperature control switch, terminal, connection capacity: <= 4 mm² / AWG 28 for drive, temperature controlled switch contact resistance: 60 µOhm
• Protection type: Thermal protection via drive or temperature control switch at 120 °C
• Width: 140 mm
• Height: 393 mm
• Depth: 120 mm
• Net weight: 3.5 kg

Environment:

• IP degree of protection: IP20
• Ambient air temperature for storage: -25…70 °C
• Ambient air temperature for operation: 0…50 °C

VW3A7703 Schneider Electric is a high-quality industrial item that is suitable for a wide range of applications in various industries. This item can be used in automation, control systems, and machinery. It is available for purchase at PLC2Day.
