Schneider Electric VW3 A7 701 Braking Resistor

Description

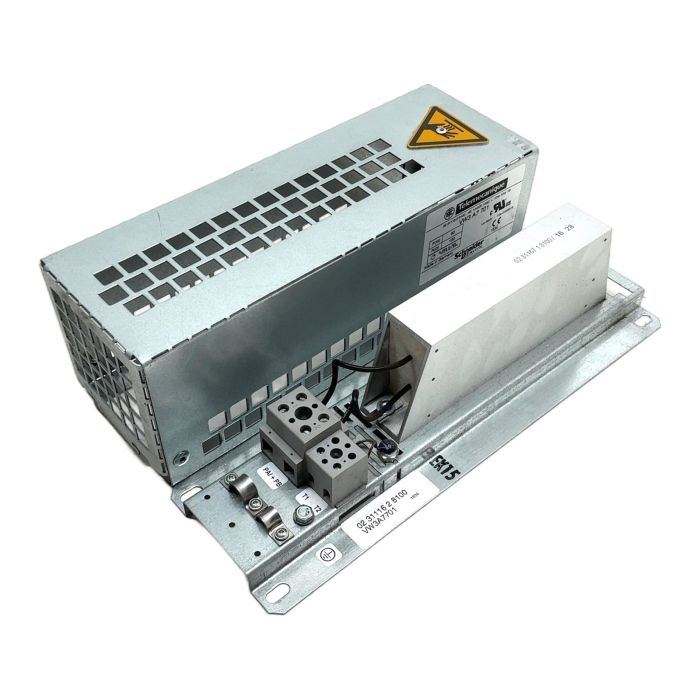

The VW3 A7 701 is a high-quality braking resistor manufactured by Schneider Electric under the Telemecanique brand. It is designed to dissipate regenerative energy from a motor during deceleration, preventing overvoltage faults in the frequency drive. This unit is essential for applications requiring frequent or rapid braking cycles, ensuring safe and reliable operation of your machinery.

Specifications

• Manufacturer: Schneider Electric
• Model: VW3 A7 701
• Product Type: Braking Resistor
• Average Power: 50 W
• Resistance: 100 Ohm
• Maximum Voltage: 600V
• Compatibility: Altivar series drives (ATV31, ATV312, ATV32, ATV320)

Label Info

• Part Number: VW3 A7 701
• Production Code: 02 31116 2 8100

Application

This resistor is commonly used in industrial automation for applications such as conveyors, hoisting equipment, machine tools, and other systems where controlled motor stopping is critical. It connects directly to the dedicated terminals on Altivar variable speed drives.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reconditioned item, you are helping to reduce industrial waste and save approximately 48.0 kg of CO2, which is comparable to the emissions from driving a car for 240 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is designed for various Schneider Electric Altivar drives, including the Altivar 31, 312, 32, and the modern Altivar Machine ATV320 series. Always check the drive's manual for specific power and resistance requirements.

This unit is designed for natural convection cooling. It must be installed in a vertical position with sufficient clearance around it as specified in the installation manual to allow for proper airflow and heat dissipation. Do not enclose it in a small, unventilated space.

No, connecting braking resistors in parallel is generally not recommended without explicit manufacturer approval. It can lead to uneven current distribution and potential overheating. If more braking power is needed, you should select a single resistor with the appropriate higher power and lower resistance rating as specified by the drive manufacturer.
