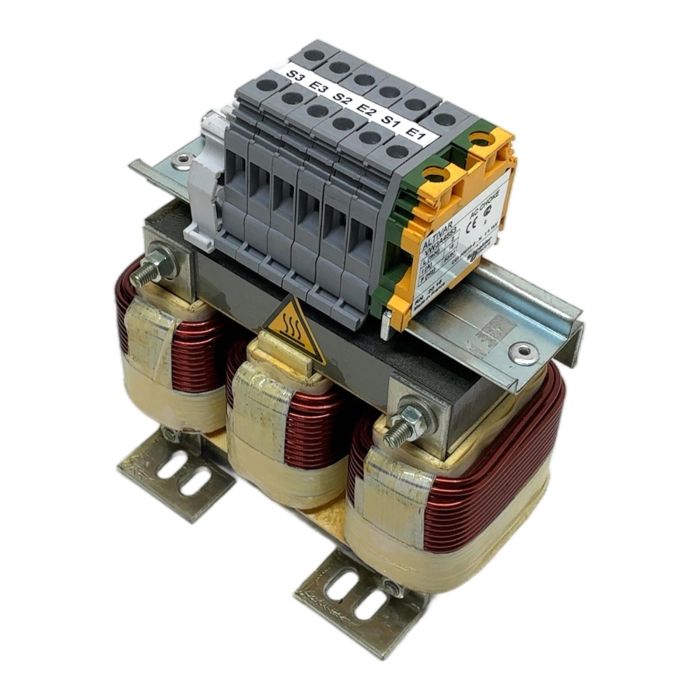

Schneider Electric Altivar AC Line Choke 16A 2mH

Description

The Schneider Electric VW3A4553 is a high-performance AC line choke designed as an accessory for the Altivar series of variable speed drives. This 16A, 2mH choke is essential for improving the reliability and performance of your motor control system. It helps to reduce harmonic distortion on the mains supply, protect the drive from line perturbations, and extend the lifespan of the drive's DC bus capacitors.

Specifications

• Manufacturer: Schneider Electric
• Part Number: VW3A4553
• Product Type: Line Choke / AC Reactor
• Rated Current: 16 A
• Inductance: 2 mH
• Network Frequency: 50/60 Hz
• Compatibility: Altivar 12, Altivar 31, Altivar 312, Altivar 32 drives

Label Info

• Brand: ALTIVAR
• Model: VW3A4553
• L (mH): 2
• I (A): 16
• F (Hz): 50/60

Application

This line choke is typically installed on the input side of a variable frequency drive (VFD) to mitigate issues related to power quality. It is widely used in industrial applications such as HVAC, pumping, material handling, and process control to ensure smoother operation and protection of sensitive electronic equipment.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 15.0 kg of CO2 emissions, which is comparable to driving an average car for 75 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the primary function of the VW3A4553 line choke in a drive system?

Its main functions are to reduce input current harmonic distortion, protect the drive's rectifier from mains voltage spikes, and limit the inrush current, thereby enhancing the overall system's power quality and reliability.

Yes, the label clearly indicates it is designed to operate on both 50Hz and 60Hz network frequencies, making it suitable for global applications.

It is designed for use with several Altivar series drives, including the Altivar 12, Altivar 31, Altivar 312, and Altivar 32, typically for models with lower power ratings corresponding to the 16A current limit.
