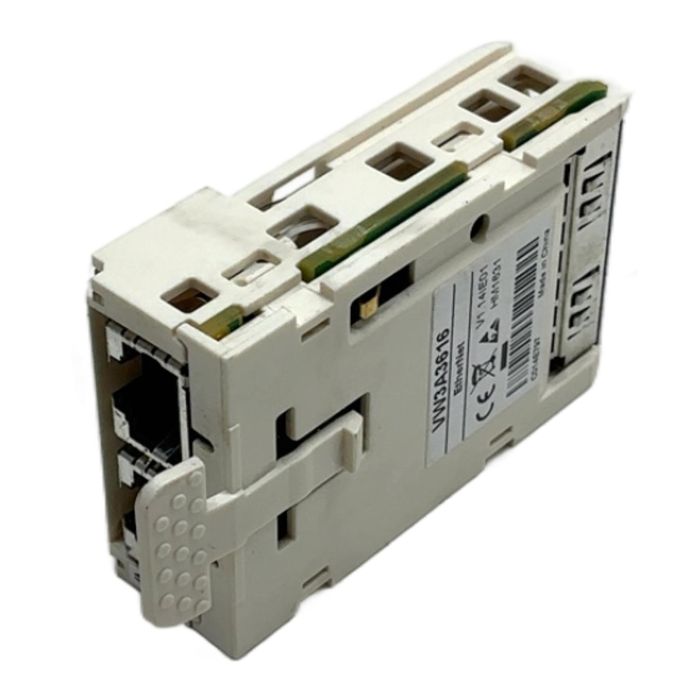

Schneider Electric EtherNet/IP Communication Module VW3A3616

Description

The VW3A3616 is an EtherNet/IP and Modbus TCP communication module developed by Schneider Electric for its Altivar series of frequency inverters. This option card allows for seamless integration of Altivar drives into modern industrial Ethernet networks, facilitating advanced remote control, monitoring, and diagnostics. Its dual-port design supports a daisy-chain topology, simplifying network wiring and reducing costs by eliminating the need for external switches in many applications.

Specifications

• Manufacturer: Schneider Electric
• Type: VW3A3616
• Product Range: Altivar
• Communication Protocol: EtherNet/IP, Modbus TCP
• Ports: 2 x RJ45
• Transmission Rate: 10/100 Mbps
• Compatibility: Altivar Machine ATV320, Altivar Process ATV600, Altivar Process ATV900

Label Info

• Model: VW3A3616
• Version: V1.14IE01
• MAC Address: 00-80-F4-06-9F-5D

Application

This module is ideal for applications in manufacturing, material handling, packaging, and process control where Altivar drives need to be integrated into an Ethernet-based control architecture for high-speed data exchange and synchronized operation.

Country of Origin

Made in China.

CO2 Impact

By purchasing this pre-owned module, you help avoid the emission of approximately 2.8 kg of CO2 associated with the production of a new unit. This saving is equivalent to the emissions from driving an average car for 14 kilometers.

Availability

This item is a used, tested product in excellent working condition. It is available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The VW3A3616 is designed for use with the Schneider Electric Altivar Machine ATV320, Altivar Process ATV600, and Altivar Process ATV900 series variable frequency drives.

Yes, the module is equipped with two RJ45 ports that act as an integrated switch, allowing for a simple daisy-chain connection to other Ethernet devices without the need for an external switch.

The IP address and other network parameters are typically configured through the drive's HMI keypad or via Schneider's SoMove software once the module is installed in the drive.
