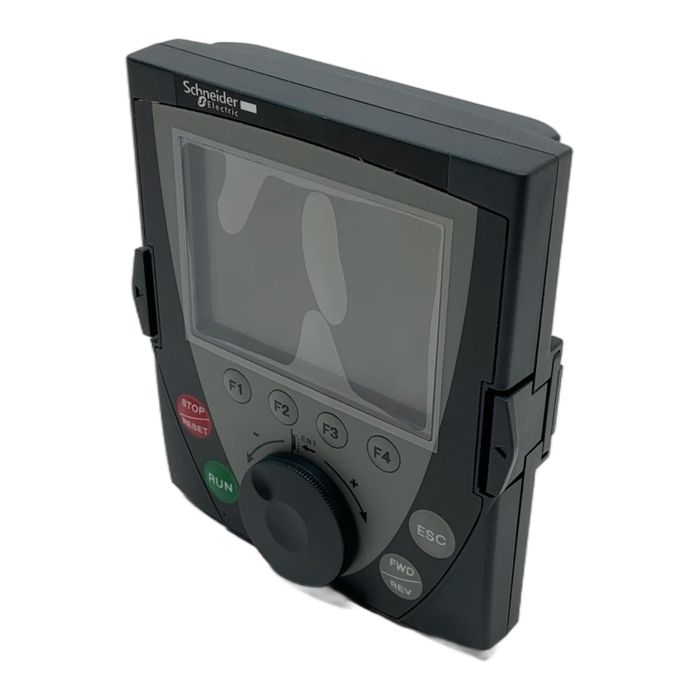

Schneider Electric VW3A1101 Graphic Display Terminal

Description

The VW3A1101 is a remote graphic display terminal from Schneider Electric, designed as an essential accessory for the Altivar series of variable speed drives. This HMI (Human-Machine Interface) allows for simplified commissioning, easy parameter adjustment, and real-time monitoring of drive performance. Featuring a clear graphic screen and an intuitive navigation wheel, it enhances user interaction and control over motor applications. The terminal can be mounted on the front of the drive or installed remotely on an enclosure door, providing operational flexibility.

Specifications

• Manufacturer: Schneider Electric
• Part Number: VW3A1101
• Product Range: Altivar
• Product Type: Graphic display terminal
• Display Type: Graphic LCD
• IP Protection Rating (Front Face): IP54
• Compatibility: Altivar 32, Altivar 61, Altivar 71, Altivar 212, Altivar 312

Label Info

• Model: VW3A1101
• Article No.: 806930
• EAN: 3389118069305
• Firmware: CPU V2.5 IE21, Flash V1.1 IE32

Application

This display terminal is widely used in industrial automation for applications requiring local control and monitoring of variable speed drives. Common sectors include manufacturing, material handling, HVAC, and water/wastewater treatment where Altivar drives are employed to control motors for pumps, fans, and conveyors.

Country of Origin

This product is Made in China.

CO2 Impact

By purchasing this refurbished component, you are contributing to a circular economy and helping to avoid approximately 6.0 kg of CO2 emissions. This is equivalent to the emissions from driving a standard car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Which Schneider Electric Altivar drive series is the VW3A1101 compatible with?

The VW3A1101 is compatible with a wide range of older generation Altivar drives, including the Altivar 32, Altivar 61, Altivar 71, Altivar 212, and Altivar 312 series.

Can this terminal be used to save and transfer drive configurations?

Yes, one of the key features of the VW3A1101 is its ability to store up to four complete drive configurations. This allows for quick duplication of settings across multiple drives or for backup and restore purposes.

Is it possible to mount the VW3A1101 remotely from the drive itself?

Absolutely. The terminal can be mounted directly on the drive or, using an appropriate remote mounting kit and cable (sold separately), it can be installed on the door of an electrical enclosure for easy access.
