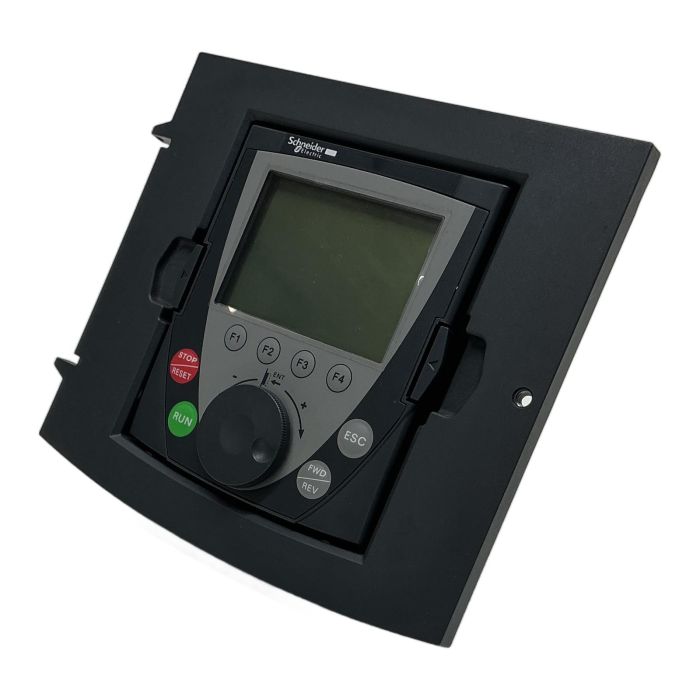

Schneider Electric VW3A1101 Display Terminal

Description

The VW3A1101 is an advanced graphic display terminal designed for the Schneider Electric Altivar series of frequency inverters. This HMI provides a user-friendly interface for programming, adjusting, and monitoring your drive. With its clear 8-line display and intuitive navigation dial, it simplifies complex configurations and provides real-time diagnostic information to minimize downtime.

Specifications

• Manufacturer: Schneider Electric
• Part Number: VW3A1101
• Product Type: Remote Graphic Display Terminal
• Compatibility: Altivar 61, Altivar 71, and other compatible series
• Display: 8-line graphic display
• IP Rating: IP54 (when correctly mounted on a drive)
• Connection: Direct plug-in or remote via RJ45 cable (with accessory kit)

Label Info

• Model: VW3A1101
• CPU Version: V2.51E21

Application

Ideal for applications requiring local control and monitoring of Altivar VFDs, such as in HVAC systems, pumping stations, and industrial machinery. It enables quick access to parameters, fault history, and operational data.

Country of Origin

This product is manufactured by Schneider Electric in Indonesia.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid 10.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this VW3A1101 terminal compatible with the Altivar 320 series drives?

No, the VW3A1101 is designed for older Altivar series like the ATV61 and ATV71. For the Altivar Machine ATV320, you would need a different display terminal, such as the VW3A1111 or remote mounting kits specific to that series.

Yes, when used with a remote mounting kit (like VW3A1102), you can connect the VW3A1101 terminal to the drive using standard RJ45 male/male cables. The terminal itself has a proprietary connector for direct mounting on the drive front.

The maximum recommended cable length for remotely mounting the VW3A1101 terminal is 10 meters (approximately 32 feet) when using shielded cables to ensure reliable communication and prevent signal degradation.
