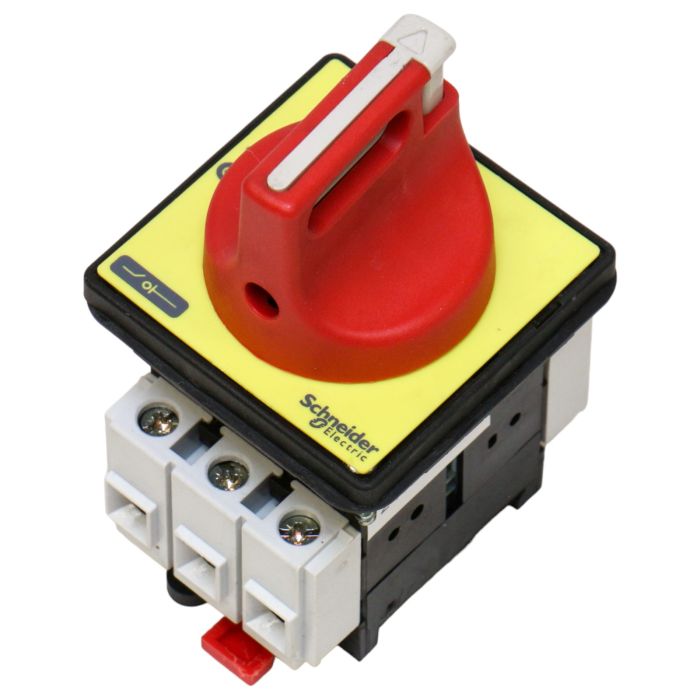

TeSys Vario - Switch disconnector with rotary knob - 3M - 32A - To be mounted on a door Specifications, Head, Range, TeSys, Product Name, TeSys VARIO, Device Short Name, V, Product Type, Switch housing, Complementary, Mounting Support, Symmetrical rail, plate, Performance Level, High performance, Number of Poles, 3P, Contact Type and Composition, 3 NO, Network type, ACDC, _, Network frequency, 50/60Hz, [Ue] IEC Rated Operational Voltage, 690 VAC 50/60 Hz, IEC Rated Operational Power in W, 11 kW at 500 V (AC-23A), 15 kW at 690 V (AC-23A), 1.5 kW at 230...240 V (AC-3), 7.5 kW at 500 V (AC-3), 7, 5 kW at 690 V (AC-3), 5.5 kW at 230...240 V (AC-23A), 11 kW at 400...415 V (AC-23A), 7.5 kW at 400...415 V (AC-3), [Ie] Rated Operational Current, 21.8 A AC-23 Ue: 400 V, [Ith] Conventional Free Air Thermal Current, 32 A, [Ithe] Conventional Enclosed Thermal Current, 25 A, Making capacity (I Rms), 320 A at 400 V AC-21A, 320 A at 400 V AC-22A, 320 A at 400 V AC-23A, Breaking Capacity, 250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A), Rated Conditional Short Circuit Current, 10 kA at 400 V - associated fuse 35 A aM, 10 kA at 400 V - associated fuse 35 A gG, [icm] Rated Short Circuit Making Capacity, 1 kA at 400 V at Ipeak, Intermittent duty class, 30, Suitability for isolation, Yes, [Uimp] rated impulse withstand voltage, 8kV, [Icw] rated short-time withstand Rms current, 384 A at 400 V duration: 1 s, Mechanical Durability, 100000 cycles, Electrical Durability, 100000 cycles AC-21, 30000 cycles DC-1...5, IEC Terminal Connection, Power circuit: screw clamp connections cable 10 mm² - cable stiffness: fixed, Power circuit: screw clamp connections cable 6 mm² - cable stiffness: flexible - with cable end, Tightening Torque, Power circuit: 2.1 Nm - on screw clamp connections, Height, 74mm, Width, 55mm, Depth, 60mm, Product Weight, 0.2kg, Environment, Standards, IEC 60947-3, Product Certifications, UL, CSA, GL, UKCA, CCC, Degree of Protection, IP20 conforming to IEC 60529, Protective Treatment, TC, Mechanical Robustness, Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 gn) conforming to IEC 60068-2-27, Ambient Air Temperature for Operation, -20…50 °C, Fire Resistance, 960 °C conforming to IEC 60695-2-1, Include: Switch: Lock: Diam: 4/8.

• TeSys Vario - Switch disconnector with rotary knob
• 3M - 32A
• To be mounted on a door
• Specifications:
• Head: Range
• TeSys: Product Name
• TeSys VARIO: Device Short Name
• V: Product Type
• Switch housing: Complementary
• Mounting Support: Symmetrical rail, plate
• Performance Level: High performance
• Number of Poles: 3P
• Contact Type and Composition: 3 NO
• Network type: ACDC
• Network frequency: 50/60Hz
• [Ue] IEC Rated Operational Voltage: 690 VAC 50/60 Hz
• IEC Rated Operational Power in W: see details above
• [Ie] Rated Operational Current: 21.8 A AC-23 Ue: 400 V
• [Ith] Conventional Free Air Thermal Current: 32 A
• [Ithe] Conventional Enclosed Thermal Current: 25 A
• Making capacity (I Rms): see details above
• Breaking Capacity: see details above
• Rated Conditional Short Circuit Current: 10 kA at 400 V
• [icm] Rated Short Circuit Making Capacity: 1 kA at 400 V at Ipeak
• Intermittent duty class: 30
• Suitability for isolation: Yes
• [Uimp] rated impulse withstand voltage: 8kV
• [Icw] rated short-time withstand Rms current: 384 A at 400 V duration: 1 s
• Mechanical Durability: 100000 cycles
• Electrical Durability: 100000 cycles AC-21, 30000 cycles DC-1...5
• IEC Terminal Connection: see details above
• Tightening Torque: Power circuit: 2.1 Nm - on screw clamp connections
• Height: 74mm
• Width: 55mm
• Depth: 60mm
• Product Weight: 0.2kg
• Environment: see details above
• Standards: IEC 60947-3
• Product Certifications: UL, CSA, GL, UKCA, CCC
• Degree of Protection: IP20 conforming to IEC 60529
• Protective Treatment: TC
• Mechanical Robustness: see details above
• Ambient Air Temperature for Operation: -20…50 °C
• Fire Resistance: 960 °C conforming to IEC 60695-2-1
• Include: Switch: Lock: Diam: 4/8

V1 3R1716 32A Schneider Electric is a high-quality industrial electrical component suitable for a wide range of applications. This item is commonly used in industrial control systems, power distribution systems, and automation equipment. You can purchase this item at PLC2Day for all your industrial electrical needs.
