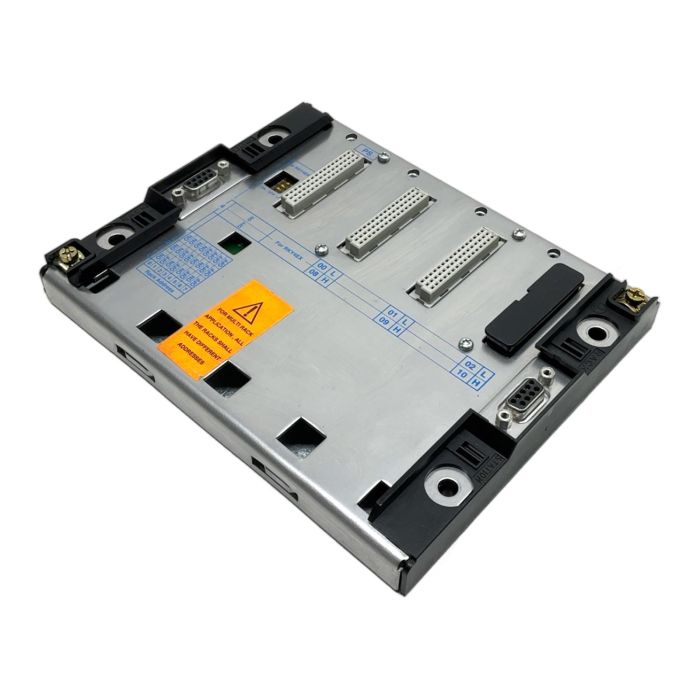

Schneider Electric TSXRKY4EX 4 Slot Extension Rack

Description

The TSXRKY4EX is a 4-slot extension rack designed for the Schneider Electric TSX Premium PLC series. This backplane allows for the expansion of a TSX Premium system by adding up to four additional modules, including I/O, communication, or specialist modules. It is a critical component for maintaining or upgrading legacy automation systems that rely on the robust and proven TSX Premium platform.

Specifications

• Manufacturer: Schneider Electric
• Part Number: TSXRKY4EX
• Product Line: TSX Premium
• Product Type: Extension Rack / Backplane
• Number of Slots: 4
• Compatibility: TSX Premium PLC modules
• Bus connection: Via bus extension cable

Label Info

• Model: TSXRKY4EX
• Serial Number: 21031226781
• Date of Manufacture: March 2003
• PV: 01, RL: 01

Application

This extension rack is used in industrial automation to increase the module capacity of a main PLC rack. It is suitable for applications in manufacturing, process control, and infrastructure where additional I/O points or functionality are required for an existing TSX Premium system.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned rack, you are helping to avoid the CO2 emissions associated with new manufacturing, estimated at 48 kg. This is a sustainable choice for your facility.

Availability

This is an obsolete item, available as a refurbished or used spare part. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the main purpose of the TSXRKY4EX rack?

The TSXRKY4EX serves as an extension backplane for a Schneider TSX Premium PLC system. It allows you to add four more modules to your system when the main rack is full, connecting back to the CPU via a bus extension cable.

Is the TSXRKY4EX compatible with the new Modicon M580 series modules?

No, this rack is specifically designed for the older TSX Premium series. It is not electrically or mechanically compatible with the modern Modicon M340 or M580 modules.

How is the rack address set on the TSXRKY4EX for a multi-rack configuration?

The rack address is set using the small rotary switches or DIP switches located on the front of the unit, labeled 'Rack Address'. Each rack in the system must have a unique address for the CPU to correctly identify and communicate with it, as indicated by the orange warning label.
