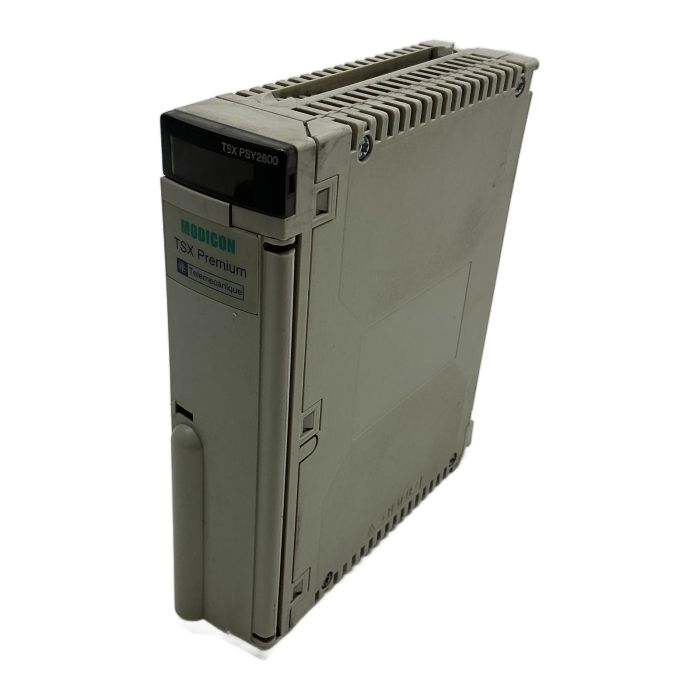

Schneider Electric Modicon Premium PLC Power Supply TSXPSY2600

Description

The TSXPSY2600 is a robust power supply module designed for the Schneider Electric Modicon Premium PLC series. It converts a 100-240V AC input into stable DC voltages required to power the CPU, backplane, and associated I/O modules. As a critical component of the control system, this module ensures reliable and continuous operation in demanding industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Series: Modicon Premium
• Model: TSXPSY2600
• Input Voltage: 100-240V AC
• Input Power: 26W
• Output Voltage (I/O): 24V DC / 0.8A
• Output Voltage (Bus): 5.1V DC / 2.6A

Label Info

• Serial Number: 21052103928
• Production Version (PV): 05
• Revision Level (RL): 03
• Date of Manufacture (DOM): May 2005

Application

This power supply is used exclusively with the Modicon Premium PLC platform, which is found in a wide range of automation applications including manufacturing, process control, and infrastructure.

Country of Origin

Made in France.

CO2 Impact

By purchasing this refurbished TSXPSY2600, you are contributing to a circular economy and avoiding approximately 24.0 kg of CO2 emissions. This saving is comparable to the emissions from driving a standard car for 120 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this TSXPSY2600 power supply compatible with the Modicon M340 or M580 series racks?

No, the TSXPSY2600 is specifically designed for the Modicon TSX Premium PLC system. For M340 or M580 systems, you need a power supply from the corresponding BMX line, such as the BMXCPS series.

This module uses a 3.6V Lithium Thionyl Chloride 1/2AA battery to back up the system memory. The battery should be replaced proactively every few years, or when the 'BAT' LED on the CPU module indicates a low battery status.

Yes, the TSXPSY2600 provides a 24V DC output with a maximum current of 0.8A. This output is primarily intended for powering the I/O modules within the same PLC rack, but it can be used for low-power external devices, provided the total current does not exceed 0.8A.
