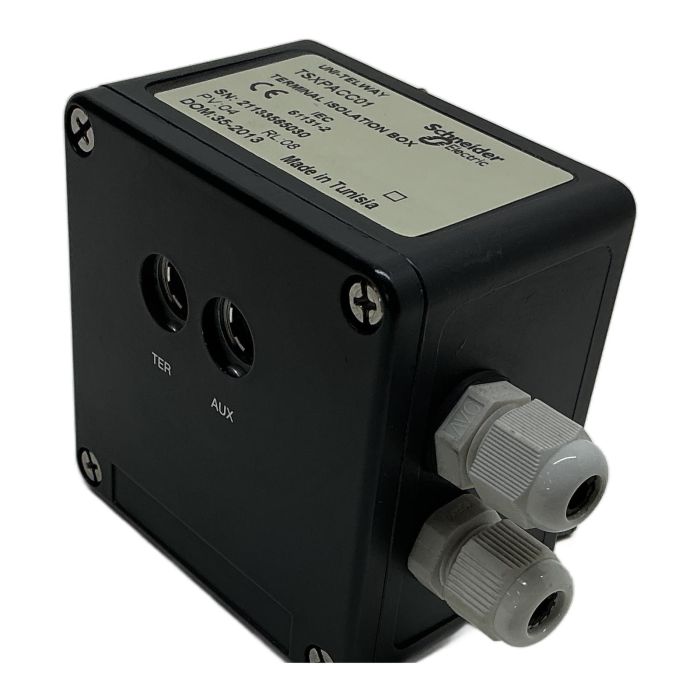

Schneider Electric TSXPACC01 Uni-Telway Isolation Box

Description

The TSXPACC01 is a terminal isolation box from Schneider Electric, designed specifically for the Uni-Telway network. It serves as a passive connection point, allowing for the termination of a bus segment in industrial automation applications. This component is essential for maintaining signal integrity and providing a durable connection, especially in legacy systems utilizing Modicon PLCs.

Specifications

• Manufacturer: Schneider Electric
• Model: TSXPACC01
• Product Type: Terminal Isolation Box
• Network Compatibility: Uni-Telway
• Connectors: 1x TER, 1x AUX
• Protection: Includes two cable glands for secure cable entry

Label Info

• Model: TSXPACC01
• Serial Number: 21133565030
• Production Version (PV): 04
• Revision Level (RL): 08
• Date of Manufacture (DOM): Week 35, 2013

Application

This isolation box is typically used in control cabinets or on machine frames to provide a termination point for a Uni-Telway network segment. It is compatible with systems built around Schneider's Modicon Premium and Quantum PLCs.

Country of Origin

Made in Tunisia.

CO2 Impact

By purchasing a refurbished or surplus item like this, you are contributing to a circular economy. The reuse of this 0.25 kg electronic component avoids approximately 10.0 kg of CO2 emissions that would have been generated from manufacturing a new one.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Its main function is to provide a passive, isolated terminal point for a Uni-Telway bus. It allows for a clean and secure connection of the bus cable and ensures proper network termination, which is critical for signal integrity.

While not explicitly stated on the label, the TSXPACC01 is generally rated for IP54 when properly installed with its cable glands, making it resistant to dust and water splashes from any direction.

No, the TSXPACC01 is designed for the legacy Uni-Telway protocol. Modern Modicon M580 PLCs primarily use Ethernet (Modbus TCP/IP, EtherNet/IP) and do not support Uni-Telway directly. This box is intended for maintaining or expanding older Modicon Premium or Quantum systems.
