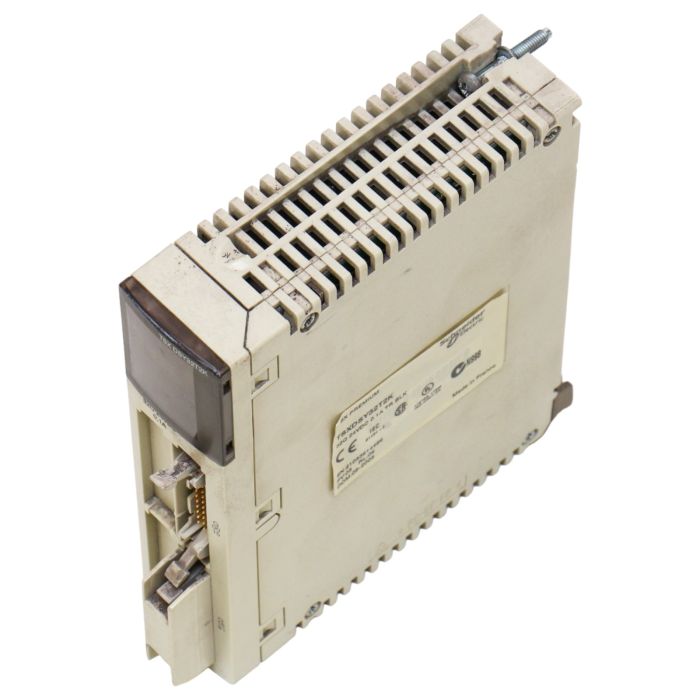

• Schneider Electric TSXDSY32T2K Picture
• Discrete output module
• Modicon Premium
• 32 outputs
• 1.6W
• Overvoltage protection by transil diode

Specifications

• Main:
• Range of Product: Modicon Premium Automation platform
• Product or Component Type: Discrete output module
• Discrete output number: 32
• Discrete output type: Solid state protected
• Discrete output voltage: 24 V DC positive EN/IEC 61131-2 19...30 V
• Complementary:
• Current per channel: 0.1 A
• Maximum current per module: 3.2 A
• Maximum leakage current: 0.1 mA 30 V
• Maximum tungsten load: 1.2 W
• [Ures] residual voltage: 1.5 V
• Response time: 1.2 ms
• Paralleling of outputs: Yes : 3 maximum
• Output overvoltage protection: By transil diode
• Reverse polarity protection: Reverse mounted diode
• Output overload protection: Automatic trip
• Short-circuit protection: Automatic trip
• Minimum load impedance: 220 W at state 1
• Isolation resistance: > 10 MOhm 500 V
• Power dissipation: (1.6 W + 0.1 W x No of outputs)
• Product Compatibility:
• Dial and Power
• Marking: CE
• Electrical connection: 2 connectors HE-10
• Current consumption: 140 mA 5 V DC
• Module format: Standard
• Net Weight: 0.66 lb(US) (0.3 kg)
• Environment:
• Dielectric strength: 1500 V 50/60 Hz 60 s
• Standards:
• CSA C22.2 No 213 Class I Division 2 Group A
• CSA C22.2 No 213 Class I Division 2 Group B
• CSA C22.2 No 142
• CSA C22.2 No 213 Class I Division 2 Group D
• 73/23/EEC
• CSA C22.2 No 213 Class I Division 2 Group C
• IEC 61131-2
• 89/336/EEC
• UL 508
• 92/31/EEC
• 93/68/EEC
• Product Certifications:
• ABS, RINA, GL, DNV, RMRS, LR, BV
• Ambient Air Temperature for Operation:
• 32…140 °F (0…60 °C)
• Ambient Air Temperature for Storage:
• -13…158 °F (-25…70 °C)
• Relative Humidity: 10…95 % without condensation for operation, 5…95 % without condensation for storage
• Operating altitude: 0...6561.68 ft (0...2000 m)
• Protective treatment: TC
• IP Degree of Protection: IP20
• Pollution degree: 2

TSXDSY32T2K Schneider Electric is a versatile and reliable industrial component that can be used in various applications such as manufacturing, energy management, and building automation. This item is available for purchase at PLC2Day.
