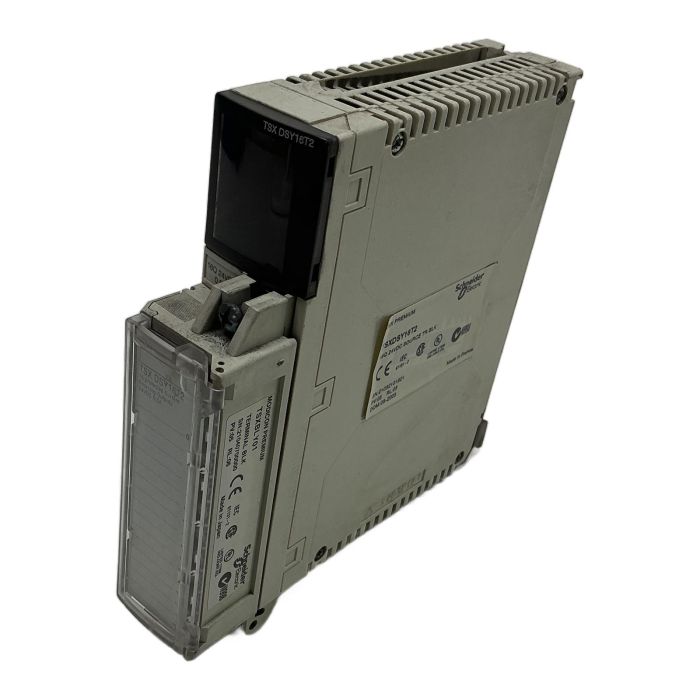

Schneider Electric TSXDSY16T2 Modicon Premium PLC Output Module

Description

The TSXDSY16T2 is a discrete output module for the Schneider Electric Modicon Premium automation platform. It offers 16 solid-state source outputs, making it ideal for controlling various 24VDC actuators in industrial machinery and process control systems. This module is renowned for its durability and reliability, providing a stable solution for legacy PLC systems. It comes complete with a TSXBLY01 removable screw terminal block for easy installation and maintenance.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon Premium
• Model: TSXDSY16T2
• Product Type: Discrete Output Module
• Number of Outputs: 16
• Output Voltage: 24V DC
• Output Current: 0.5A per channel
• Output Logic: Positive (Source)
• Connection: Includes TSXBLY01 20-pin removable terminal block

Label Info

• Type: TSXDSY16T2
• Serial Number: 21052101821
• PV: 05
• RL: 05
• Date of Manufacture (DOM): 05-2005

Application

This module is designed for use in a wide range of industrial automation applications, including manufacturing lines, material handling systems, and process control where reliable switching of 24VDC loads is required.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned module, you are helping to avoid the emission of approximately 14 kg of CO2 associated with the production of a new unit. This sustainable choice supports a circular economy and reduces industrial waste.

Availability

This is a tested, used item in excellent working condition. It is a cost-effective replacement for a failed module or a valuable spare for your critical operations. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module is specifically designed for the Schneider Electric Modicon Premium series of Programmable Logic Controllers.

Yes, it requires an external 24VDC power supply to power the output channels and the loads connected to them.

The TSXBLY01 is a removable 20-way screw terminal block that allows for easy and secure wiring of the 16 output channels and their power connections without having to remove the entire module from the PLC rack.
