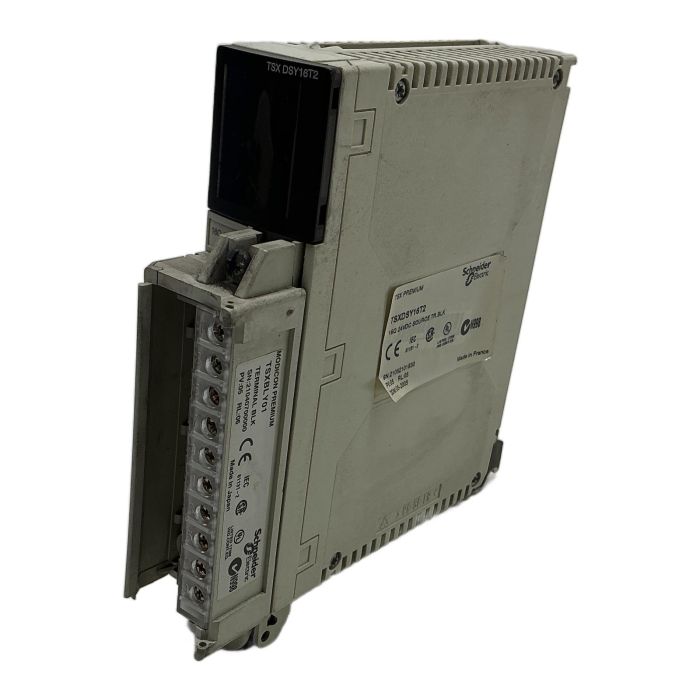

Schneider Electric TSXDSY16T2 - Modicon Premium 16-Point Output Module

Description

The TSXDSY16T2 is a discrete output module for the Schneider Electric Modicon Premium PLC platform. It provides 16 solid-state source outputs, rated for 24V DC operation. This module is ideal for controlling actuators, solenoid valves, and indicator lights in industrial automation applications. It comes complete with its removable TSXBLY01 screw terminal block for easy wiring and maintenance.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Modicon Premium
• Model Number: TSXDSY16T2
• Discrete Outputs: 16 (source type)
• Output Voltage: 24V DC
• Current per Output: 0.5 A
• Total Module Current: 8 A max
• Protection: Short-circuit, overload, and overvoltage protection
• Terminal Block: Includes removable TSXBLY01 screw terminal block

Label Info

• TSXDSY16T2: PV:05, RL:05, DOM:05-2005, SN:21052101830
• TSXBLY01 (Terminal Block): PV:05, RL:06, SN:21040700000

Application

This module is designed for use within a Modicon Premium PLC system to expand its digital output capabilities. It is commonly used in manufacturing, process control, and material handling systems to interface with 24V DC field devices.

Country of Origin

The main module (TSXDSY16T2) is made in France. The terminal block (TSXBLY01) is made in Japan.

CO2 Impact

Choosing this pre-owned module over a new one saves approximately 12.0 kg of CO2. This is equivalent to the emissions from charging over 1400 smartphones.

Availability

This is an obsolete item, but it is available from stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this module compatible with the latest Modicon M580 systems?

Answer

No, the TSXDSY16T2 is part of the obsolete Modicon Premium series and is not directly compatible with the M580 backplane. It requires a Modicon Premium rack and CPU.

What is the maximum current per output point and for the entire module?

Answer

Each of the 16 outputs can handle a maximum current of 0.5A. The total current for the module should not exceed 8A.

Does this module include built-in protection against short-circuits or overloads?

Answer

Yes, the TSXDSY16T2 features integrated electronic protection against overloads and short-circuits for each output group, enhancing system reliability. It also has overvoltage protection.
