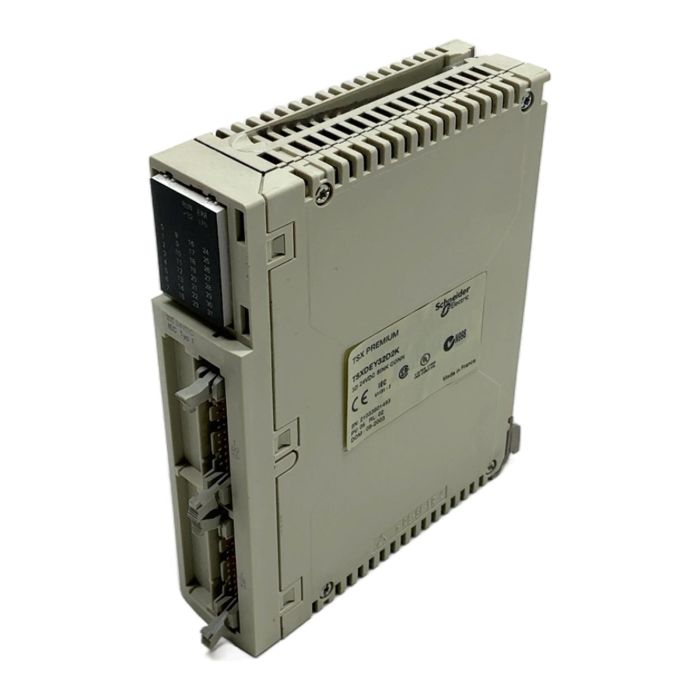

Schneider Electric TSXDEY32D2K - Modicon Premium Digital Input Module

Description

The TSXDEY32D2K is a discrete digital input module from Schneider Electric's Modicon Premium series. It is designed to process 32 input channels with a 24VDC sink logic. This module is a crucial component for legacy systems, allowing for the integration of digital field signals such as sensors, push-buttons, and limit switches into a PLC-controlled process. Its robust design ensures reliable performance in demanding industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Series: Modicon Premium (TSX57)
• Model: TSXDEY32D2K
• Product Type: Digital Input Module
• Number of Inputs: 32
• Input Voltage: 24VDC
• Input Logic: Sink (Positive logic)
• Connector Type: 40-pin HE10

Label Info

• PV (Product Version): 06
• RL (Release Level): 02
• DOM (Date of Manufacture): 09-2003
• SN (Serial Number): 21033801493

Application

This module is used in various industrial automation applications, including manufacturing lines, process control, and material handling systems that are built upon the Modicon Premium platform. It is ideal for spare parts inventory or for expanding existing systems.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned module, you are contributing to a circular economy and helping to avoid approximately 16 kg of CO2 emissions that would be generated from manufacturing a new unit.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, the TSXDEY32D2K is specifically designed for the Modicon Premium (TSX57) series racks. It is not compatible with the Modicon Quantum series, which uses a different form factor and backplane.

This module uses a 40-pin HE10 connector. You will need a pre-wired cable assembly, such as the Schneider Electric TSXCDP series cables, to connect field devices to the module.

No, the 'K' at the end of the model number TSXDEY32D2K specifically indicates it is a SINK input module. For a source configuration, you would need the corresponding source module, such as the TSXDEY32D3K.
