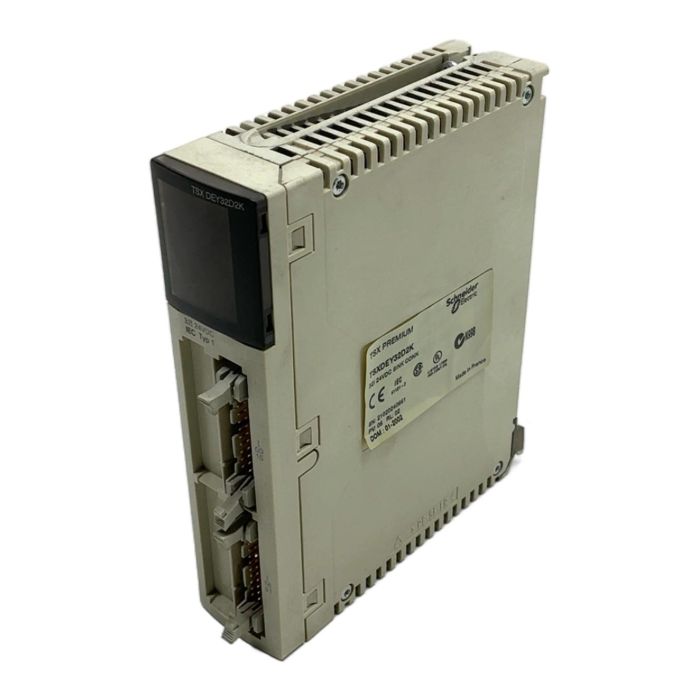

Schneider Electric TSXDEY32D2K - Modicon Premium 32-Point Digital Input Module

Description

The TSXDEY32D2K is a high-density discrete input module for the Schneider Electric Modicon Premium series. It provides 32 sink-type digital inputs for 24V DC signals, making it an ideal choice for applications requiring a large number of sensor or switch inputs. This module is renowned for its durability and is a key component for maintaining legacy industrial automation systems. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Modicon Premium
• Model: TSXDEY32D2K
• Input Type: Digital Input
• Number of Inputs: 32
• Input Voltage: 24V DC
• Input Logic: Sink (Positive logic)
• Connection Type: 40-way connector
• Compliance: IEC 61131-2 Type 1

Label Info

• SN: 21020240661
• PV: 06
• RL: 02
• DOM: 01-2002

Application

This module is commonly used in manufacturing, process control, and infrastructure applications to connect sensors, push buttons, limit switches, and other digital signal sources to a Modicon Premium PLC system.

Country of Origin

Made in France.

CO2 Impact

By reusing this part, you contribute to a circular economy and avoid approximately 16 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This item is a tested, used product. Stock is limited due to its obsolete status.

FAQ

This module is compatible with all Schneider Electric Modicon Premium series processors, such as the TSX57 series CPUs.

A cable with a 40-way HE10 connector is required for wiring. Schneider Electric offers pre-assembled cables like the TSXCDP series for easy connection to terminal blocks.

This module is configured within the hardware configuration of the Modicon Premium PLC project, using software such as Unity Pro or the older PL7 Pro, depending on the processor's firmware version.
