Description / SCHNEIDER ELECTRIC TSXDEY32D2K

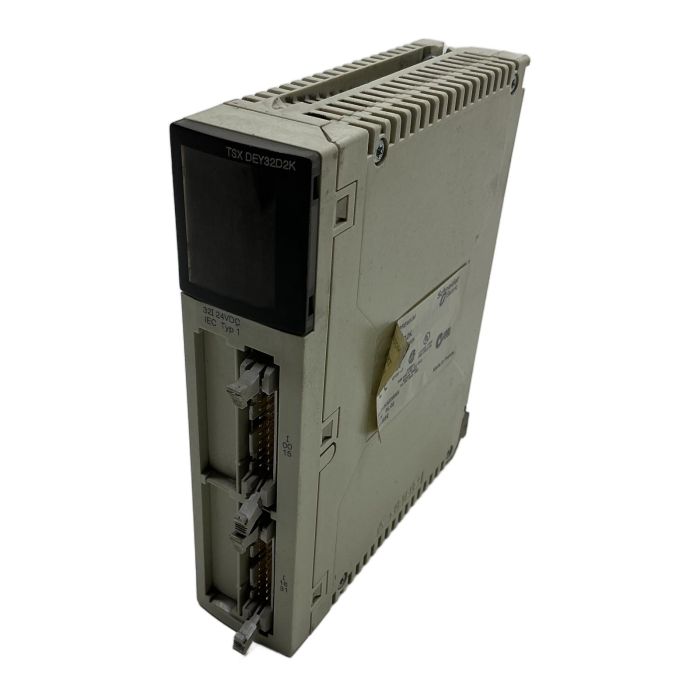

Schneider Electric Modicon Premium Digital Input Module TSXDEY32D2K
Description
The TSXDEY32D2K is a discrete DC input module for the Schneider Electric Modicon Premium PLC platform. It offers 32 input channels for 24VDC signals with sinking logic. This module is an essential component for expanding the input capabilities of legacy automation systems, allowing for the monitoring of a large number of sensors, switches, and other field devices.
Specifications
- Manufacturer: Schneider Electric
- Product Range: Modicon Premium
- Model: TSXDEY32D2K
- Product Type: Discrete Input Module
- Number of Inputs: 32
- Input Voltage: 24V DC
- Input Logic: Sink (Positive Logic, IEC Type 1)
- Connection: 2x 20-pin connectors
- Lifecycle Status: Obsolete
Label Info
- Model: TSXDEY32D2K
- Input Spec: 32I 24VDC SINK CONN
- Serial Number: 21065209564
- PV: 06, RL: 02
Application
This module is widely used in industrial automation applications including manufacturing lines, process control systems, and machine building, specifically within systems built upon the Modicon Premium platform.
Country of Origin
Made in France.
CO2 Impact
Opting for this refurbished TSXDEY32D2K module prevents the manufacturing of a new one, saving an estimated 12.0 kg of CO2. This saving is comparable to the emissions from charging over 1400 smartphones.
Availability
As an obsolete item, this module is available as a refurbished or surplus part. It is ideal for maintenance, repair, and operations (MRO) to extend the life of existing Modicon Premium systems. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question?
What type of connectors are needed for this TSXDEY32D2K module?
Answer
This module requires two 20-pin HE10 type connectors for wiring the 32 inputs. Schneider Electric offers pre-fabricated cables like the TSXCDP series for easy connection.
Question?
Is this module compatible with the Modicon M340 or M580 series?
Answer
No, the TSXDEY32D2K is specifically designed for the Modicon Premium PLC platform. It is not compatible with the newer Modicon M340 or M580 racks and processors. A functional equivalent for the M340 platform would be the BMXDDI3202K.
Question?
What does "Sinking Input" (IEC Type 1) mean for this module?
Answer
A sinking input module provides the ground (0V) connection to the field device. The sensor or switch you connect to the input must be supplied with a positive voltage (+24V), and when it activates, it 'sinks' the current to the module's input terminal. This is also known as positive logic.Last Update: Friday, March 13, 2026
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
More Information
| Item Number | TSXDEY32D2K |
|---|---|
| Brands | Schneider Electric |
| HS Code | 85371098 |
| EAN | 0 |
| HS Description | PLC Digital Input Module |
| Manufacturer | Schneider Electric |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
